Hydratone 1642

Waterbased UV Printer

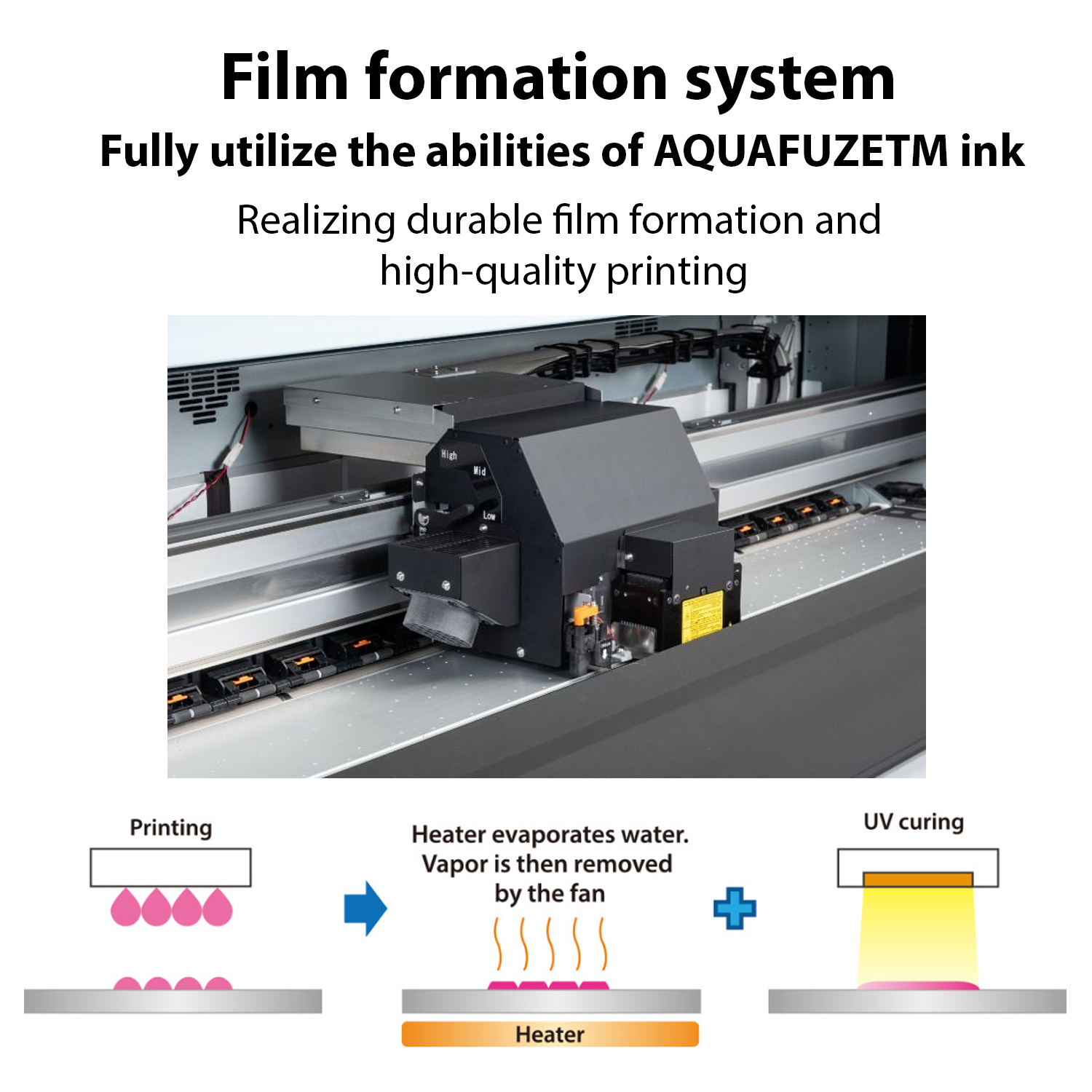

MUTOH’s HydrAton 1642 sets a new standard in digital printing with innovative waterbased UV technology. Integrating advanced print/dry technology and an ultra-thin ink film formation process, the HydrAton ensures low-odour, low-temperature drying for durable, scratch-resistant, and soft-feel prints.

Engineered with sustainability and workplace safety at its core, the HydrAton 1642 is your ideal partner for producing high-quality, environmentally responsible prints

Revolutionary ink technology

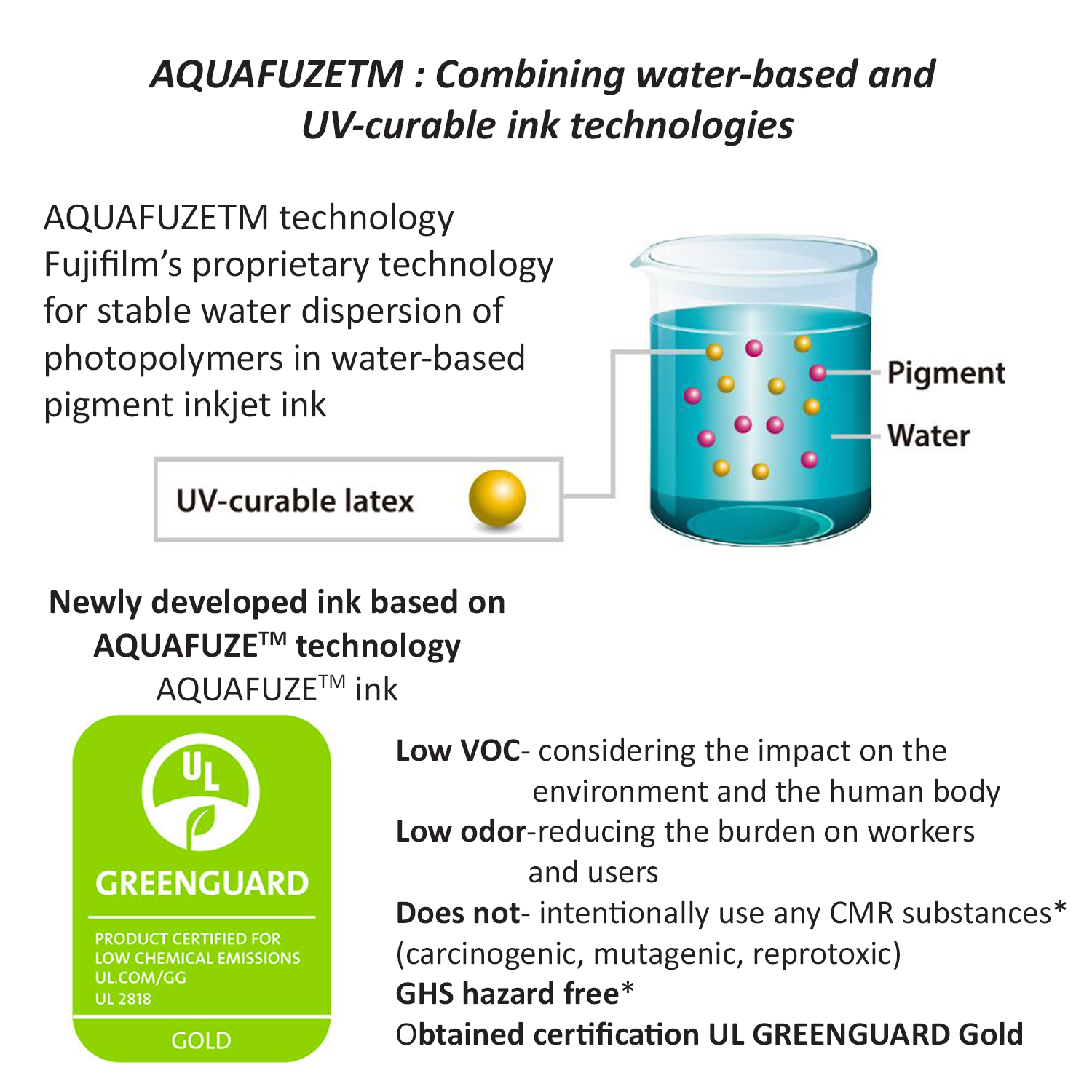

HydrAton 1642 is powered by AQUAFUZE™, an advanced UV-curable waterbased ink technology developed by Fujifilm. This hybrid ink system combines the benefits of waterbased and UV-curable inks, utilizing Fujifilm’s proprietary dispersion technology to achieve low-VOC, low-odour, and non-hazardous printing.

Application possibilities
From signage and wall coverings to interior decor and promotional displays, the HydrAton 1642 provides the flexibility and reliability needed to meet diverse business needs, helping you create eye-catching designs that stand out.

Feature Details
Print Head On-demand piezo drive system
Head Height Low: 1.5mm, Middle: 2.0mm, High: 2.5mm
Number of Print Heads 2
Maximum Roll Media Width 1,625mm (Min: 500mm)
Maximum Media Thickness 1.0mm or less is recommended
Media Diameter 200mm or less
Media Weight 30kg or less
Core Diameter 2 or 3 inches
Maximum Printable Width 1,615mm
Ink Type AQUAFUZETM
Ink Colors 4 color (Cyan, Magenta, Yellow, Black)
Ink Capacity 1,000ml ink bag
Interface Gb-Ethernet (1000BASE-T)
Power Supply AC 100V~120V ±10% / AC 200V~240V ±10%, 50/60Hz ±1Hz
Power Consumption Operation: 1.4kW or less, Maximum: 2.7kW or less
Dimensions (WxDxH) Body size: 2,770mm × 895mm × 1,428mm
With ink case installed: 2,770mm × 895mm × 1,611mm
Weight Printer body: 146kg, Stand: 32kg, Take-up unit: 8kg
RIP Software Genuine RIP software VerteLith
Specifications Notice All specifications and product names are registered trademarks of the respective companies.

Download Hydratone 1642
