NJ-3200H

  • Imported LED UV cold light curing lamp
  • Imported linear guide Imported German wire
  • Imported high power AC servo motor
  • Ink carriage anti-collision device
  • Automatic material height measurement system
  • Intelligent positioning device
  • Fully automatic ink supply and ink shortage alarm system
  • Independent constant temperature heating control system for ink circuit

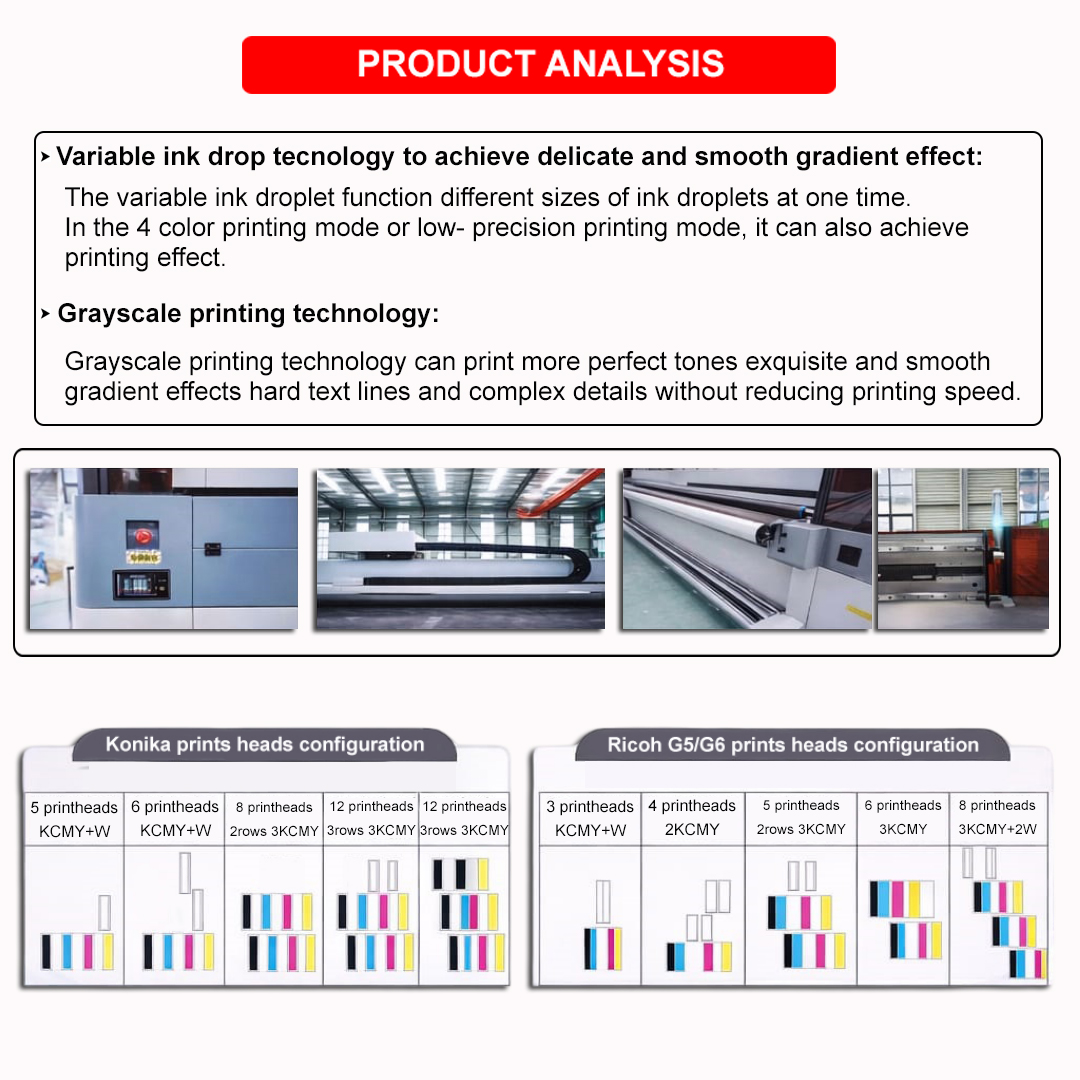

Product Analysis

Variable ink drop technology to achieve delicate and smooth gradient effect: The variable ink droplet function can print ink into three different sizes of ink droplets at one time. In the 4-color printing mode or low-precision printing mode, it can also achieve a non-granular and delicate printing effect.

Grayscale printing technology:
Grayscale printing technology can print more perfect tones, exquisite and smooth gradient effects, hard text lines and complex details without reducing printing speed.

Feature Details
Model NJ 3200
Size 3200mm
Print Heads Konica / Ricoh G6 / Ricoh G5
Printheads Number 4–24 pcs
Output Accuracy 726 × 2400 dpi

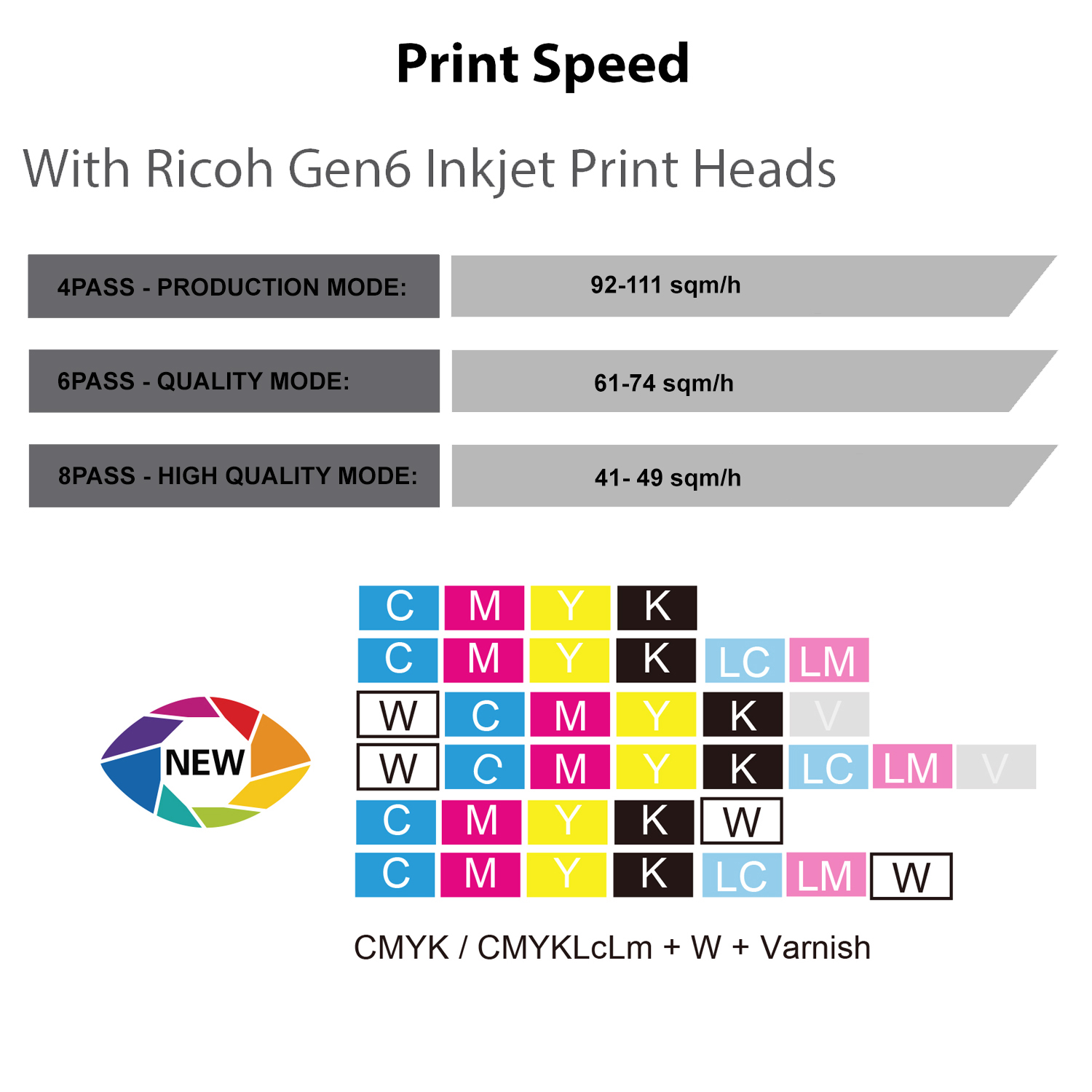

Print Speed 4 pass: 92–111 m²/h
6 pass (Production Quality): 61–74 m²/h
8 pass (High Quality): 41–49 m²/h
Inkjet Technology Piezoelectric inkjet technology, press and print as needed
Ink LED environmentally friendly ink, bright and high durability
Ink Bottle Capacity 3500 ml/bottle
Material Flatbed (Glass / Acrylic / Metal / Plastic)
Roll (PET / Soft Film / 3P Fabric / Printed Fabric / Knife Scrapped Fabric)
File Format TIFF, JPEG, POSTSCRIPT, EPS, PDF, etc.
Data Transfer USB 3.0
Color Control International standard ICC color control
Material Handling Industrial grade feeding and receiving system
Operating System Win 7 / 10
Color Configuration CMYK + Lc + Lm + W + V
RIP Software ONYX Rip Center
Operating Environment Temperature: 20–28℃, Humidity: 40%–70%
Voltage 220V
Power 6KW

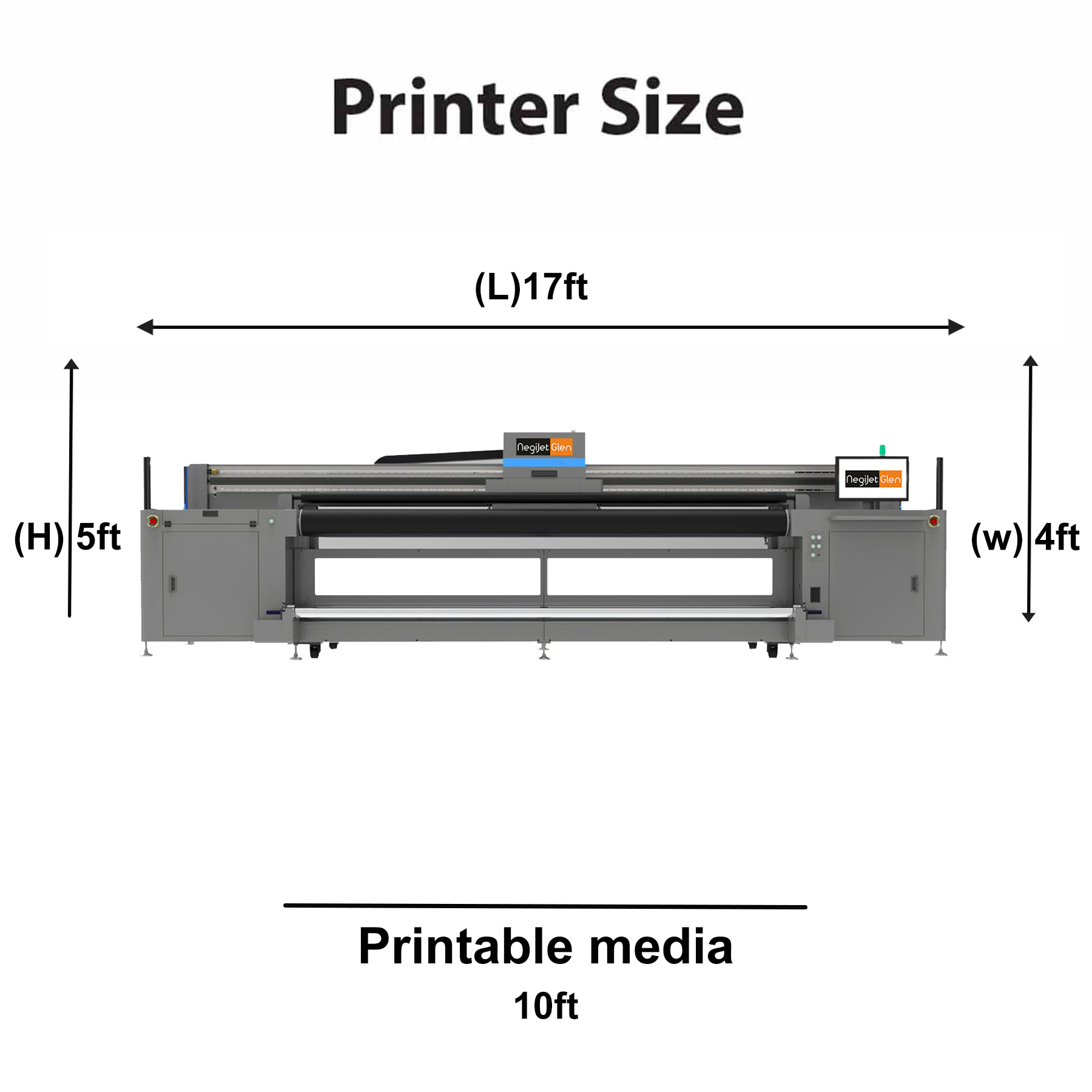

Printer Size 5406 × 1090 × 1638 mm
Curing System LED lamp curing system; the lamp has the function of adjusting the energy size to increase the service life
