NJ Glen UV RTR-1602UV

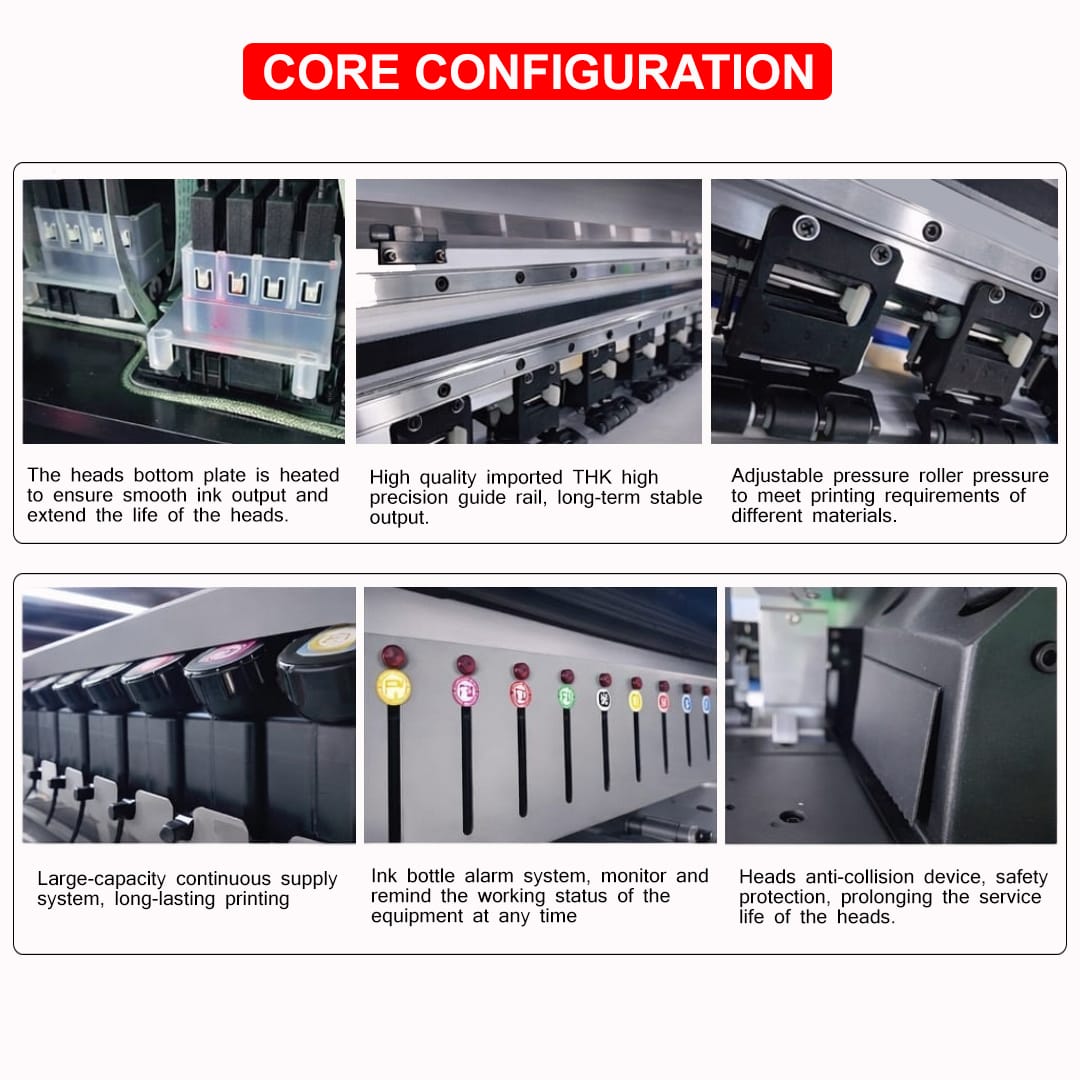

A compact yet powerful 1.6m UV printer designed for vibrant, high-resolution indoor applications. Equipped with dual 1600-U1 print heads (13200-U1 optional), it delivers exceptional color output including fluorescent yellow, magenta, green, and orange—perfect for striking effects under both natural and UV light. Ideal for posters, POP displays, exhibition graphics, and creative decor, the NJGlenUVRTR-1602UV supports up to 10 colors and 2400 dpi resolution. With features like a bulk ink supply system, heated head base, water-cooled UV curing, and precision guide rails, it’s built for professionals who demand standout visuals and reliable performance.

ENQUIRY!

Categories: All Product, INDUSTRIAL UV, Negijet RTR Printer

Specifications
Links and Downloads

Feature	Details
Model	NJ-1602UV
Print Head	Double i1600-U1 Print Heads (13200-U1 Optional)
Printing Technology	Piezoelectric Inkjet
Acceptable Media Width	63.7 in. (1620 mm)
Acceptable Media Thickness	Maximum 59 mil(1.5 mm)
Acceptable Media Weight	176 lb.(80 kg)
Printing Width	63 in.(1600 mm)
Ink Type	UV Ink
Ink Supply	Bulk ink supply system with 500ml ink tank
Ink Color	CMYK+FoFyFmFg
Printing Resolution	Maximum 2400 dpi

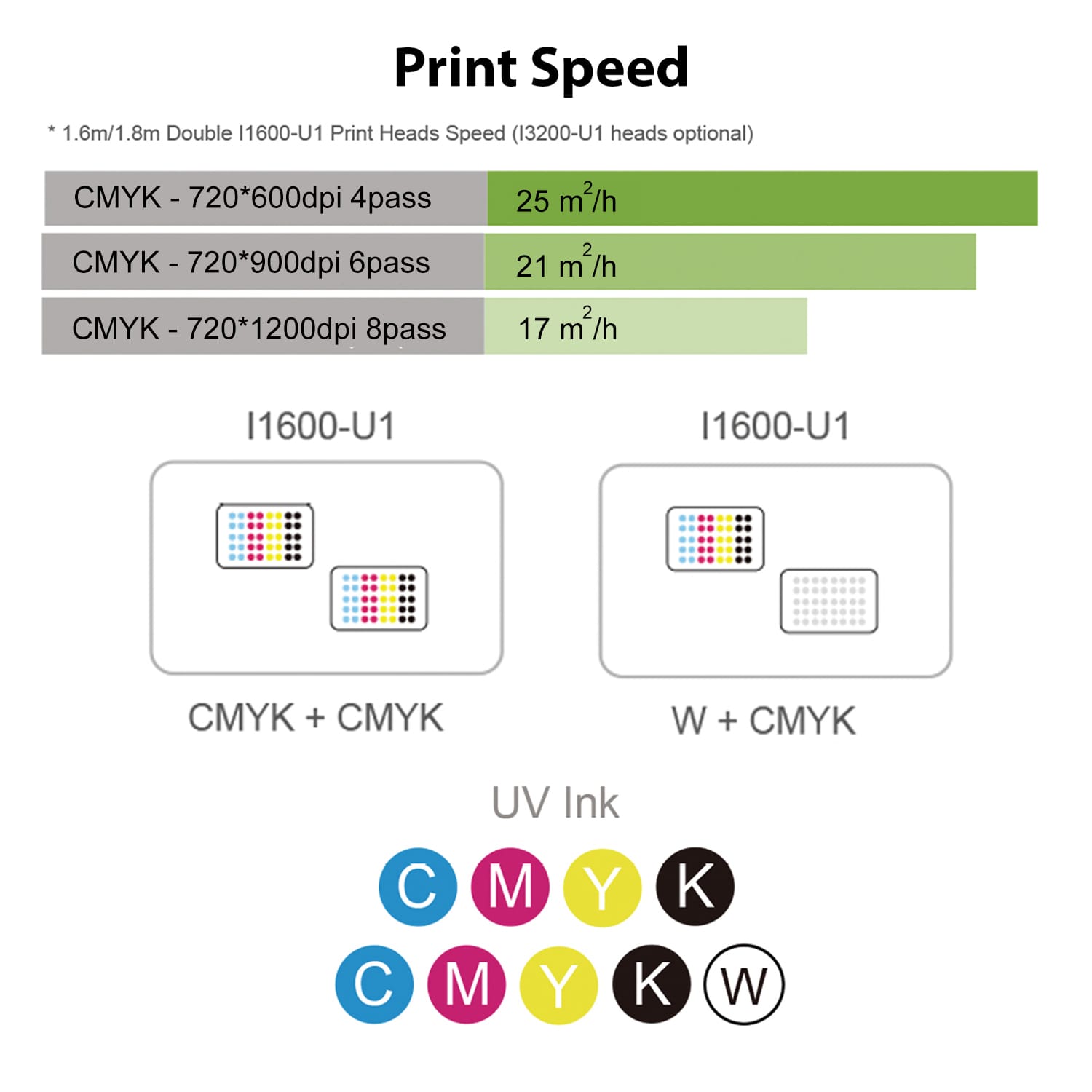

Speed(CMYK)/(W+CMYK)	6pass (720900dpi) 21 m2/h 6pass (720900dpi) 11 m2/h
Curing Unit	Water-cooling UV lamp
Interface	Ethernet
Power Supply	AC 220V ± 10%, 50/60 HZ

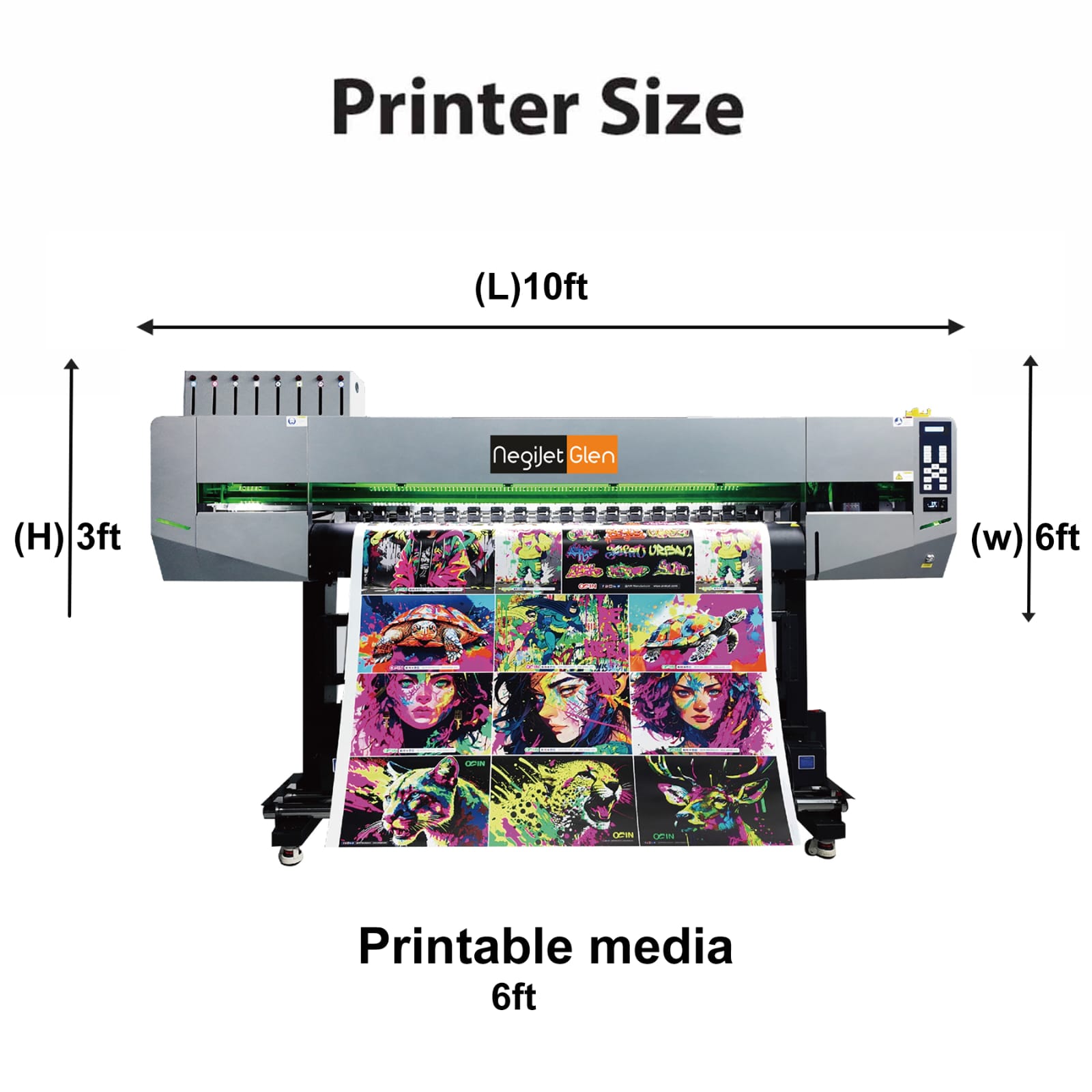

Dimensions (with stand)	102(W)x30(D)x62(H) in. (2600(W)x680(D)x1580(H) mm)
Weight (with stand)	617 lb. (280 kg)
Packing Size	110(W)x30(D)x30(H) in. (2800(W)x760(D)x760(H) mm)
Package Weight	661 lb. (300 kg)
Environment (Power On)	Temperature: 59 F to 90 F [15°C to 32°C]/ Humidity: 35 to 80% (no condensation)
Environment (Power Off)	Temperature: 41 F to 104 F [5°C to 40°C]/Humidity: 20 to 80% (no condensation)
