NJ Glen UV RTR-3202UV /3203UV /3204UV

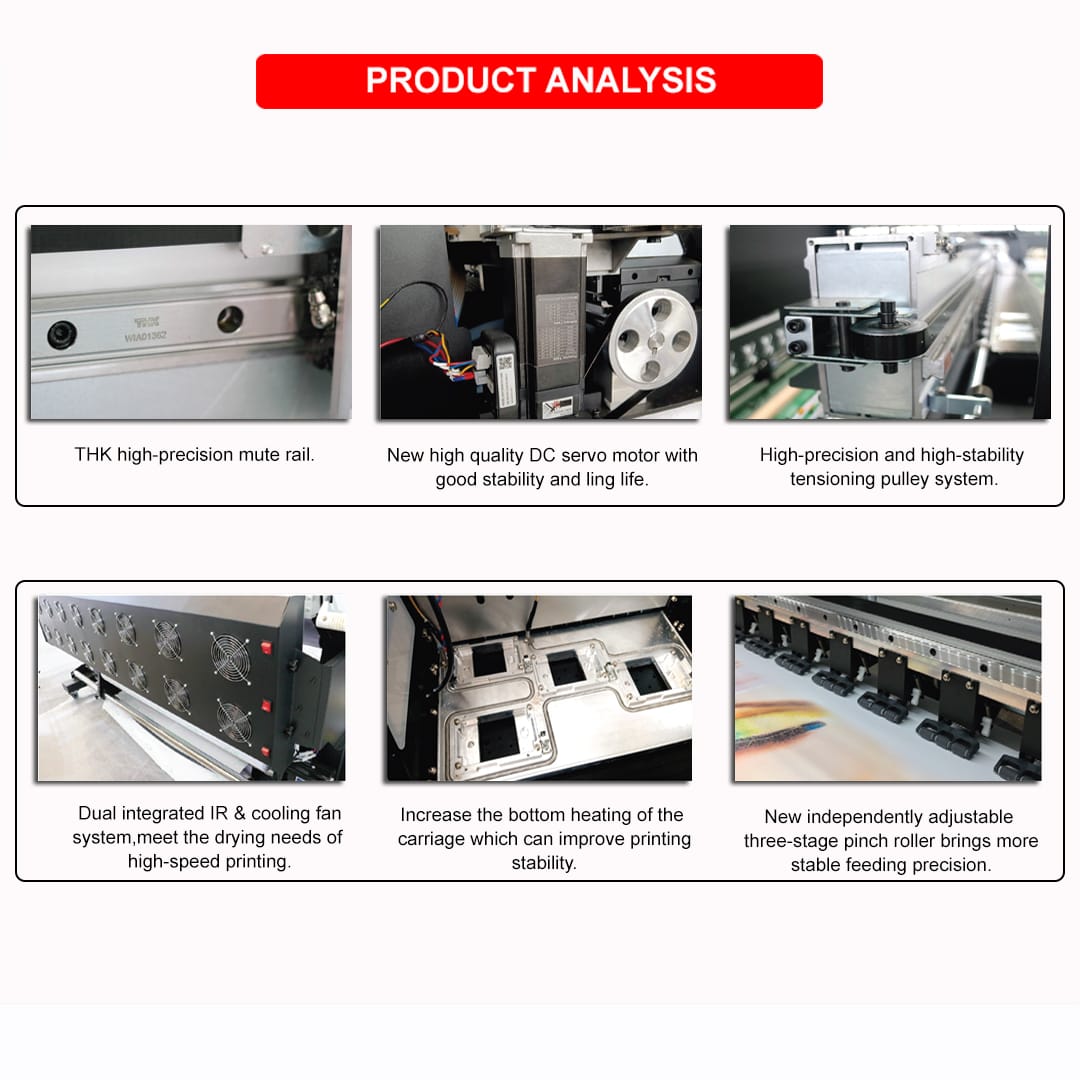

A versatile, high-speed 3.2m UV printer built for professional, large-format printing. Equipped with 2 to 4 advanced 13200-U1 print heads, it supports up to 3-layer printing (Color + White + Color), ensuring vibrant output even on transparent materials. Designed for diverse applications including vinyl, wallpaper, canvas, and car wraps, this eco-friendly printer uses international-standard UV inks and features a high-precision guide rail, intelligent ink system, and stable LED water-cooled curing. Ideal for businesses needing quality, efficiency, and flexibility in print production.

ENQUIRY!

Categories: All Product, INDUSTRIAL UV, Negijet RTR Printer

Specifications
Links and Downloads

Feature	Details
Model	NJ-3202 UV/3203 UV/3204 UV
Print Head	Double / Three / Four 13200-U1 Heads
Printing Technology	Piezoelectric Inkjet
Acceptable Media Width	3220 mm
Acceptable Media Thickness	Maximum 39 mil(1 mm)
Acceptable Media Weight	80 kg
Printing Width	3200 mm
Ink Type	UV Ink
Ink Supply	Bulk ink supply system with 500ml ink tank
Ink Color	CMYK/W+CMYK (2heads) / CMYK + W + CMYK (3heads)
Printing Resolution	Maximum 2400 dpi

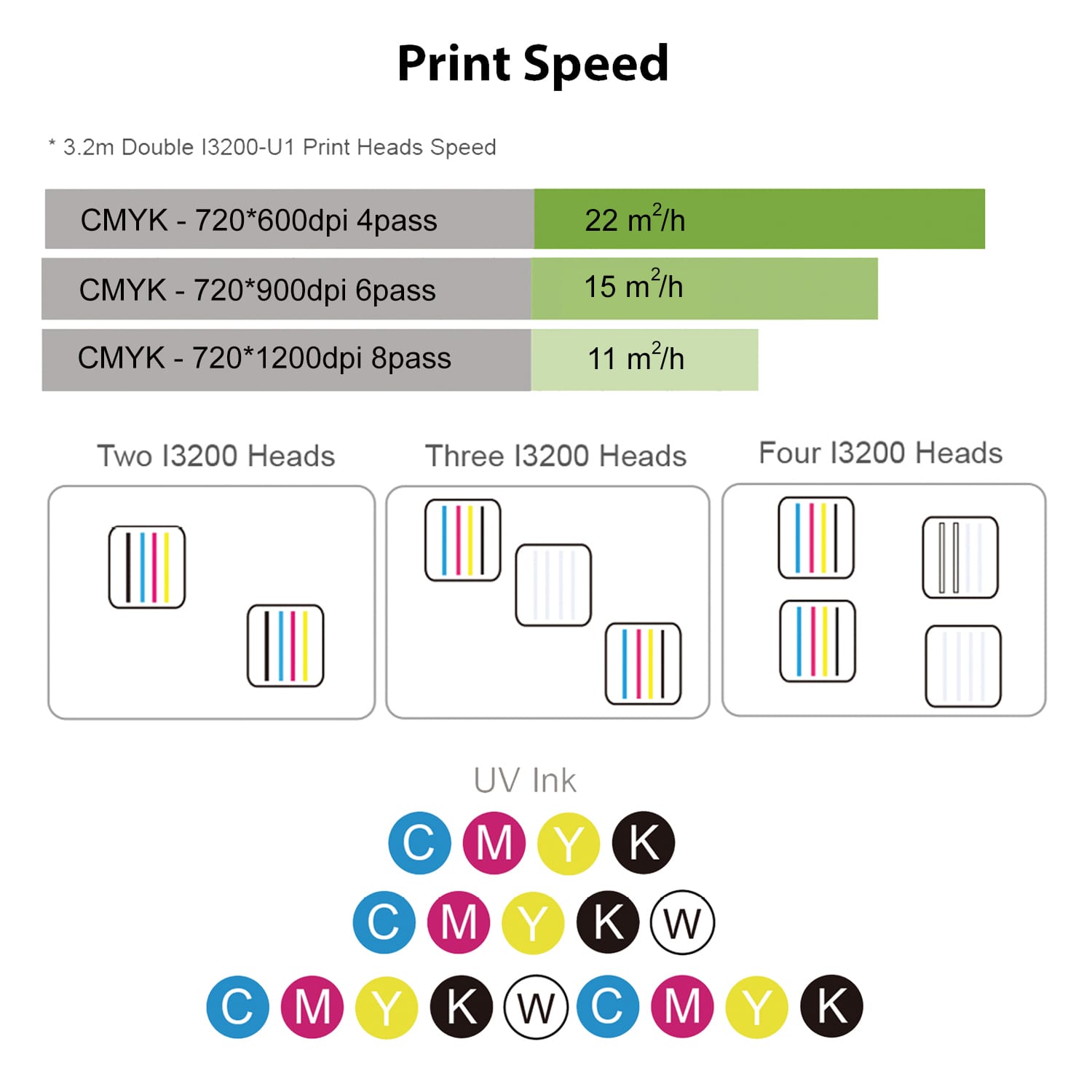

Speed	4pass (720600dpi) 22 m2/h-2 heads CMYK 6pass (720900dpi) 15 m2/h – 2 heads CMYK
Curing Unit	Water Cooling UV lamp
Interface	Ethernet
Power Supply	AC 220V ± 10%, 50/60 HZ

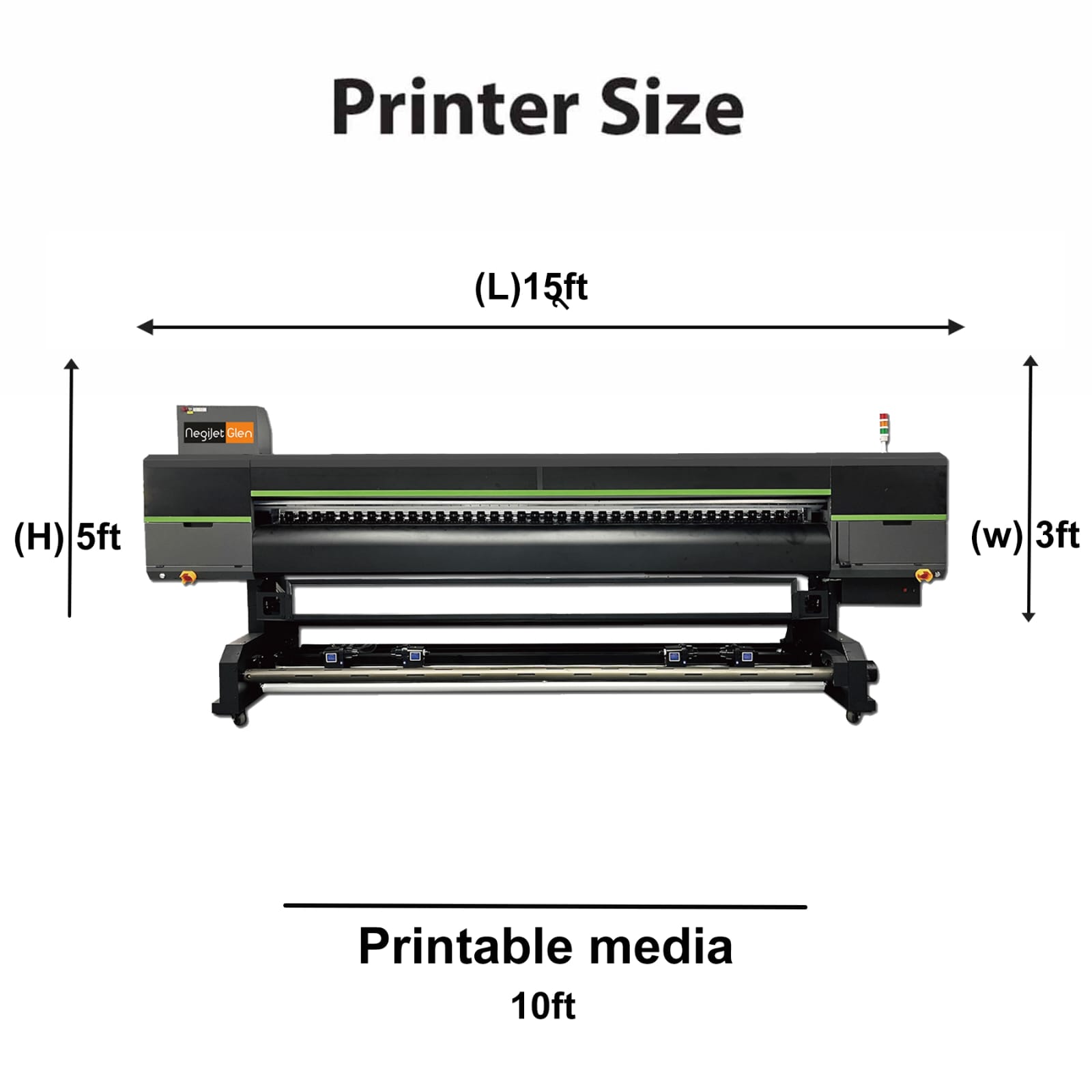

Dimensions (with stand)	4580(W)x970(D)x1580(H) mm
Weight (with stand)	800kg
Packing Size	5050(W)x1050(D)x670(H) mm (Split packaging)
Package Weight	850kg
Environment (Power On)	Temperature: 59 F to 90 F [15°C to 32 C]/ Humidity: 35 to 80% (no condensation
Environment (Power Off)	Temperature: 41 F to 104 F [5°C to 40°C]/Humidity: 20 to 80% (no condensation)
