NJ-Redline-1361 UV Flatbed Printer

The NJ-Redline-1361 is a multifunctional flatbed UV Printer with EPSON i3200 or RICOH Gen6 nozzel and print speeds of up to 15m2/h:

The color configuration options include 4 colours/ 6 colours/ 8 colours white, and varnish, offering a variety of color scheme

The adjustable printhead height ranges 1-150mm. MULTIPLE COLOR, WHITE, VARNISH AND SPOT COLOR CHANNEL PRINTING OPTIONS, Suitable for home improvement industry building materials printing.

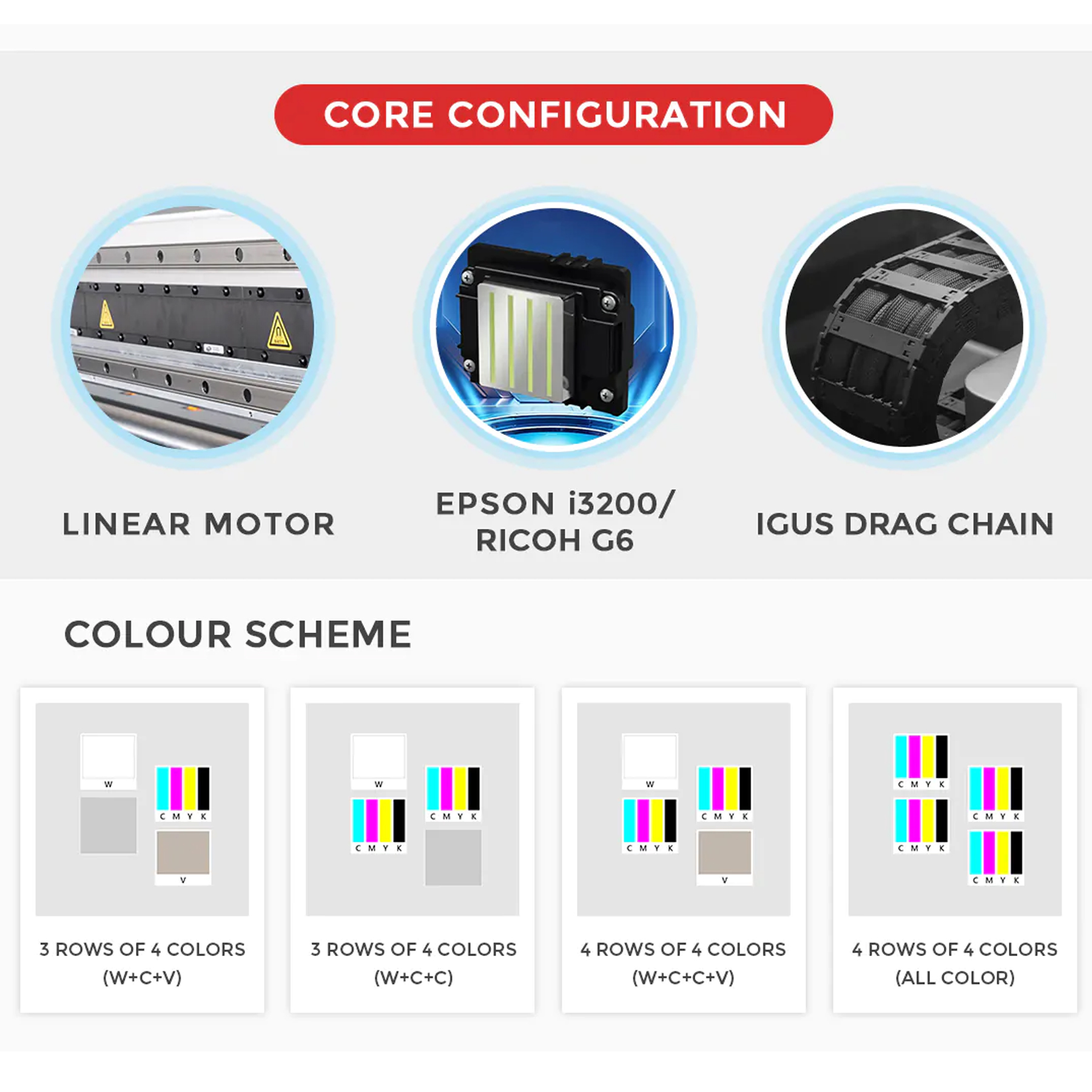

Core Configuration

MULTIPLE COLOR, WHITE, VARNISH AND SPOT COLOR CHANNEL PRINTING OPTIONS

To show higher visual and printing color art effect, as well as unique relief three-dimensional effect and spot color demand, we have CMYK+LC+LM, 7 or 10 color scheme, more multi-way white, varnish channel, more variety of printing spot color customization service

Recent research into secure wallet options led me to explore https://safepal.com.mx/, which offered clear guidance for protecting personal crypto holdings.



EMBEDDED INTELLIGENT CONTROL SYSTEM AND WAVEFORM CUSTOMIZATION SCHEME

A variety of nozzle embedded intelligent control system adapt to different industries simulate. compatibility tests in different environments to provide quantifiable test data and results for various industries from nozzle compatibility testing, waveform customization, and print drop point fine control.

ALL-STEEL PRECISION WELDING AND PRECISION GANTRY CENTER PROCESSING AGING RACK HEAVY-DUTY STRUCTURE

The frame and steel beam are made of seamless extruded square steel.
The installation positioning and accuracy of all motion mechanism are ensured by precise laser feeding, precise welding, high temperature annealing aging process, imported CNC gantry milling machine four-sided cutting processing and drilling. There are 48 positioning points and multiple precision installation reference points to ensure printer structure

Product Details

Rear cover foldable design

The rear cover is foldable quick loading and unloading operation

Fuselage headlight belt design

I find the safepal crypto wallet reliable for securely managing crypto assets across devices while offering straightforward recovery and intuitive controls.

The deisgn of the belt is beautiful and gorgeous to enhance the visual effect.

Dual jet power supply

The left side controls the fan and the right side controls the main circuit of the equipment

Datachable operating panel

The detachable operation panel can customize a variety of function keys

Ink bottle alarm adjusts to front panel

Real-time monitoring of ink volume prompts more clear and ituitive

Universal socket

The american standard socket is replaced with a universal socket for a wider range of application

While exploring cross-chain features, I found the rabby wallet intuitively organizes accounts and permissions, improving daily workflow and security.

ACRYLIC VIEWING WINDOW

It is convenient to directly observe the temperature and negative pressure value of the control board of the secondary ink cartridge; The material of the trolley head is changed from cold-rolled sheet to aluminum sheet, which improves the lightness and durability.

CONCEALED HINGE

The new model uses a concealed hinge for a more beautiful appearance

Эксперты отмечают, что кракен сайт даркнет может функционировать как кракен онион и частичный кракен маркетплейс в сети тор.

NEGATIVE PRESSURE GAUGE MOVES FORWARD

The new model is moved from the side to the front for easy observation and adjustment.

DETACHABLE BEAM HOUSING SHEET METAL

Detachable beam body sheet metal, convenient early line laying and later replacement line tube maintenance.

NEW CAR OPTICAL AXIS DESIGN
New car optical axis design, further improve the stability of the car structure.



ANTI-COLLISION DEVICE APPEARANCE UPGRADE

The appearance of the collision avoidance device has been upgraded to improve the overall aesthetics and safety.

Feature Details
Printhead RICOH GEN6 – 5PL : 3 / 6 Heads
EPSON i3200 – 1 Head
High Speed Mode  RICOH: 726 × 600 dpi, 4 pass – 15 m²/h

EPSON: 720 × 1200 dpi, 4 pass – 15 m²/h

Standard Mode RICOH: 726 × 900 dpi, 6 pass – 10 m²/h
EPSON: 720 × 1800 dpi, 6 pass – 10 m²/h
High-Quality Mode RICOH: 726 × 1200 dpi, 8 pass – 8 m²/h
EPSON: 720 × 2400 dpi, 8 pass – 8 m²/h
Ink Color Type  C / M / Y / K / Lc / Lm / Lk / LLk / W / V
Print Technology Industrial Piezoelectric Inkjet
Ink Types Eco-Solvent Ink, Water Based Ink, UV Ink, Sublimation Ink
RIP Software ONYX Rip Center / Photoprint
Color Configuration 4 Color / 6 Color / 8 Colors / White / Varnish Optional
Operating System Windows 7 / 10 / 11 (64-bit)
Image Forma TIF/ JPEG/ EPS/ PDF
Printhead Height 1–150 mm (Adjustable)
Printing Materials  Interior décor (glass, wood, tiles), Packaging, Labels & Prototyping, Customized promotional products, toys & gifts
Media Specifications 2,500 × 1,230 mm
Print Size 1300 × 610 mm + Flexible (Sheets, Coils, Cylinders & Rigid Substrates)
Maximum Weight of Material ≤ 45 kg/m
Printing Drying System

Cooling System

Data Interface

LED UV Curing System

LED Water Cooling System

Hi-Speed USB 3.0

Power Supply

Maximum Power
Access Parameter



>15A, 3.5KW

AC 220V (±5%), 50/60 Hz AC 220V (±5%), 50/60 Hz

Working Conditions

Humidity
Temperature

35–80% RH (No Condensing)
25–32°C (Recommended, No Frost)
Specification

Printer Dimension/ Net Weight
Package Dimension/ Gross Weight



050 × 1820 × 420 mm / 680 KG

150 × 1850 × 1550 mm / 860 KG
