NJ-Redline-3225 UV Flatbed Printer

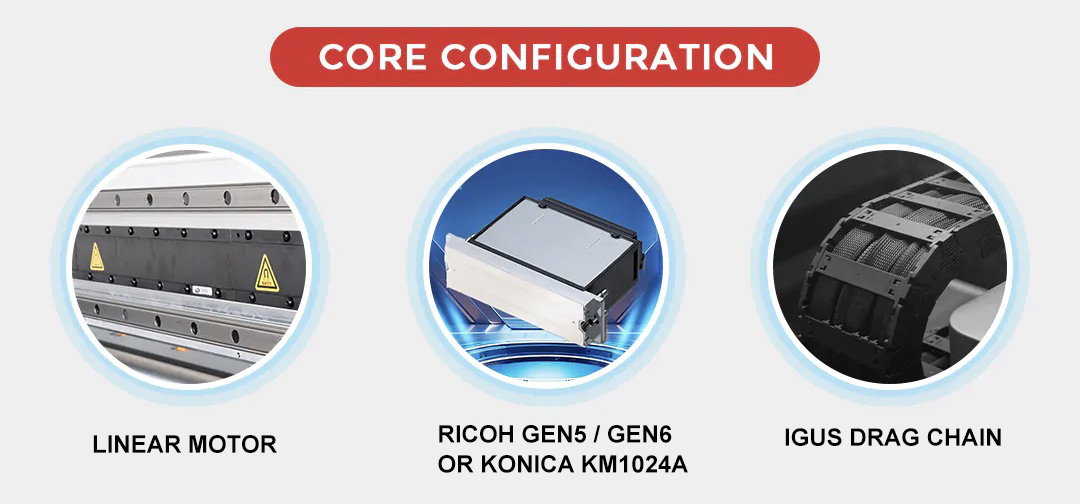

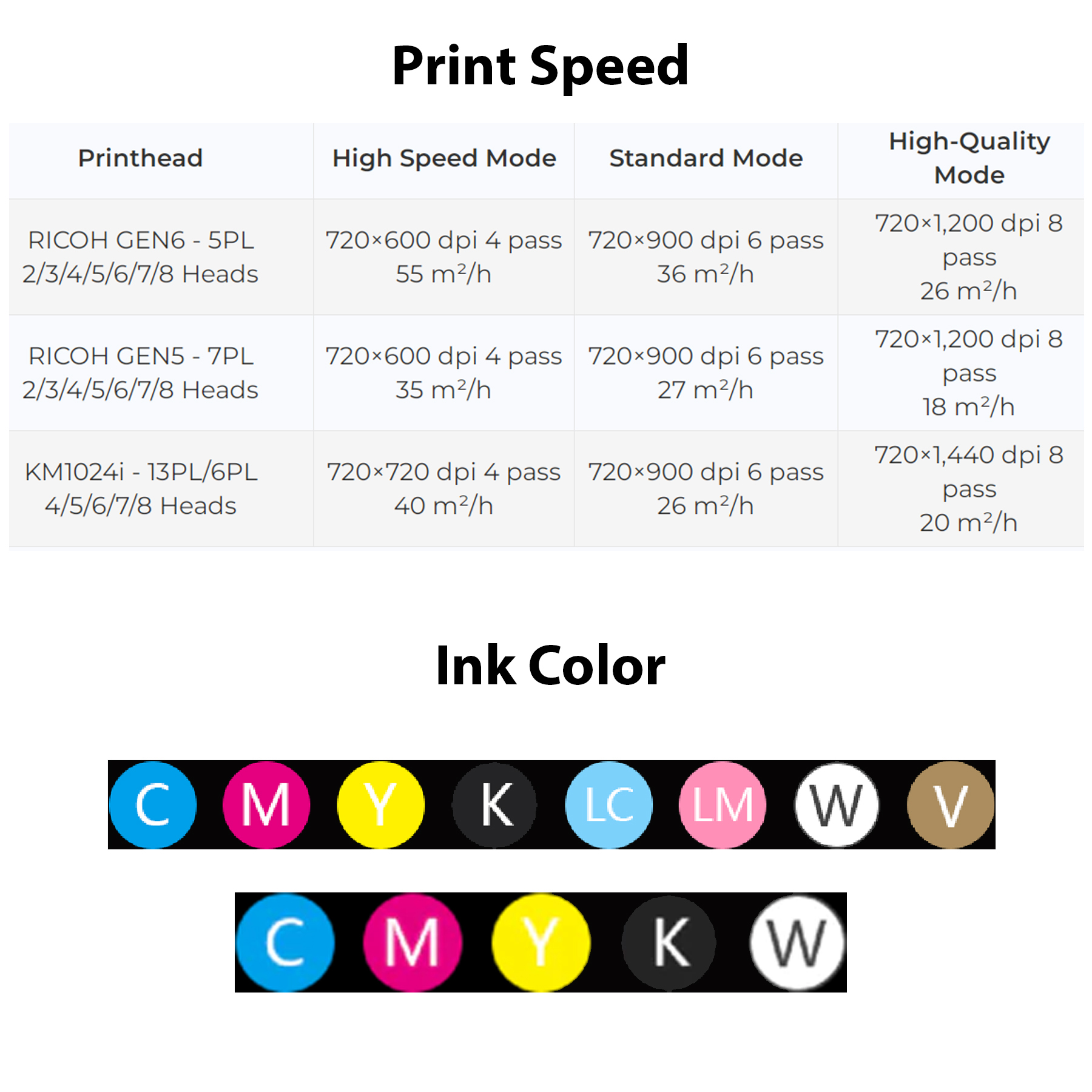

The NJ-Redline-3225 is a high UV flatbed Printer Specialized for Printing on sheets in the building materials industry. it can be equipped with Ricoh GEN6 and KONICA 1024A printheads, achieving a printing speeds of up to 55m²/h;

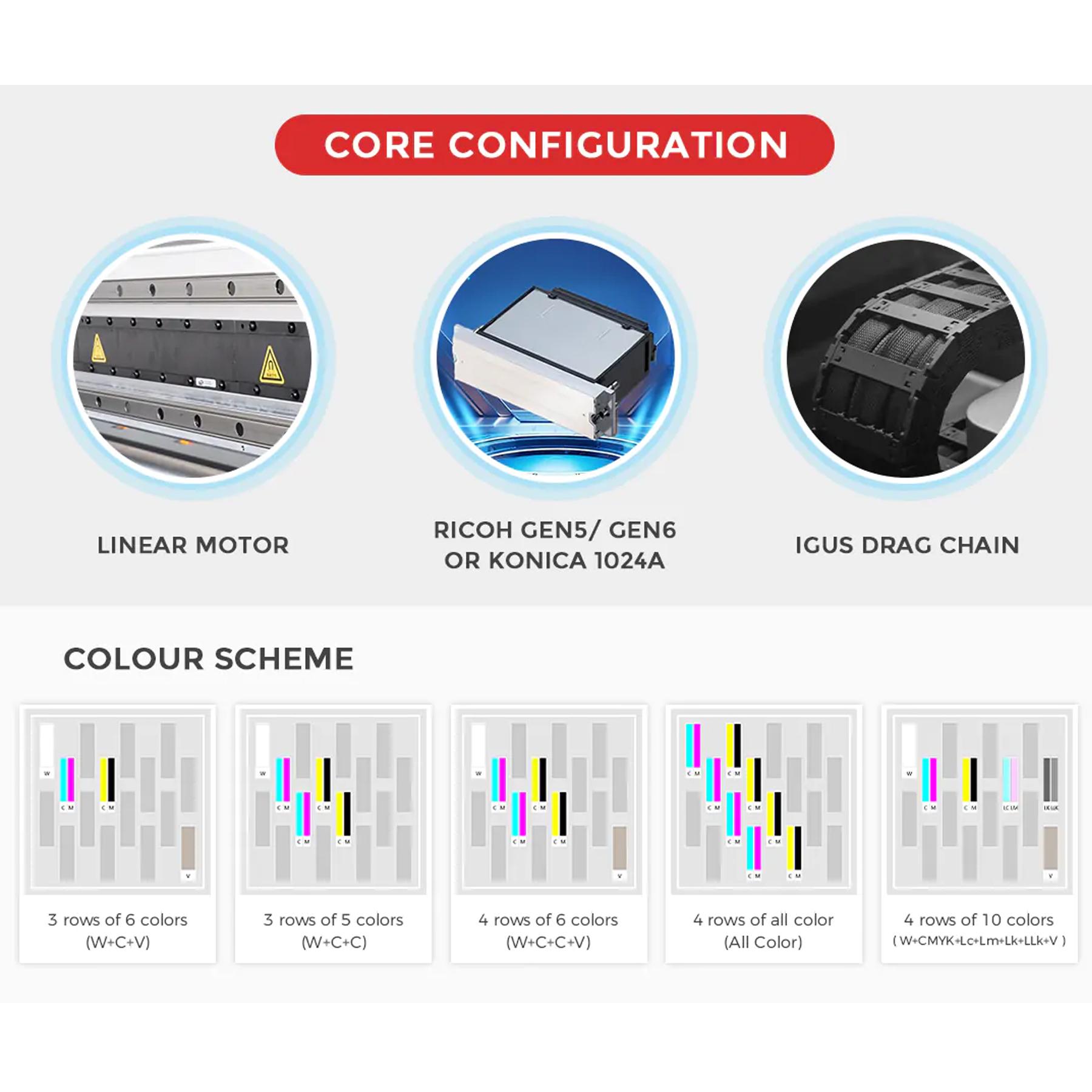

It offers color configurations of 4 colors/ 6 colors/ white and varnish, with multiple color scheme options:
The adjustable printhead height ranges from 2-100mm, and the printing size is 2440x1220mMULTIPLE COLOR, WHITE, VARNISH AND SPOT COLOR CHANNEL PRINTING OPTIONS, Suitable for home improvement industry
MULTIPLE COLOR, WHITE, VARNISH AND SPOT COLOR CHANNEL PRINTING OPTIONS
To show higher visual and printing color art effect, as well as unique relief three-dimensional effect and spot color demand,
we have CMYK+LC+LM, 7 or 10 color scheme, more multi-way white, varnish channel, more variety of printing spot color customization service.
EMBEDDED INTELLIGENT CONTROL SYSTEM AND WAVEFORM CUSTOMIZATION SCHEME
A variety of nozzle embedded intelligent control system adapt to different industries simulate compatibility tests in different environments to provide quantifiable test data and results for various industries from nozzle compatibility testing, waveform customization, and print drop point fine control.
ALL-STEEL PRECISION WELDING AND PRECISION GANTRY CENTER PROCESSING AGING RACK HEAVY-DUTY STRUCTURE
The frame and steel beam are made by seamless extruded square steel. The installation positioning and accuracy of all motion mechanism are ensured by precise laser feeding, precise welding, high temperature annealing aging process, imported CNC gantry milling machine four-sided cutting processing and drilling. There are 48 positioning points and multiple precision installation reference points to ensure the printer structure.
SUPER MARBLE 00 LEVEL TESTING PLATFORM, SKILLED DEBUGGING TOOLS AND PROCESSES
No expense is spared to customize level testing platform which controls the debugging accuracy of printing beam and double rail of machine equipment within 5C, the noise under..
PRODUCT DETAILS

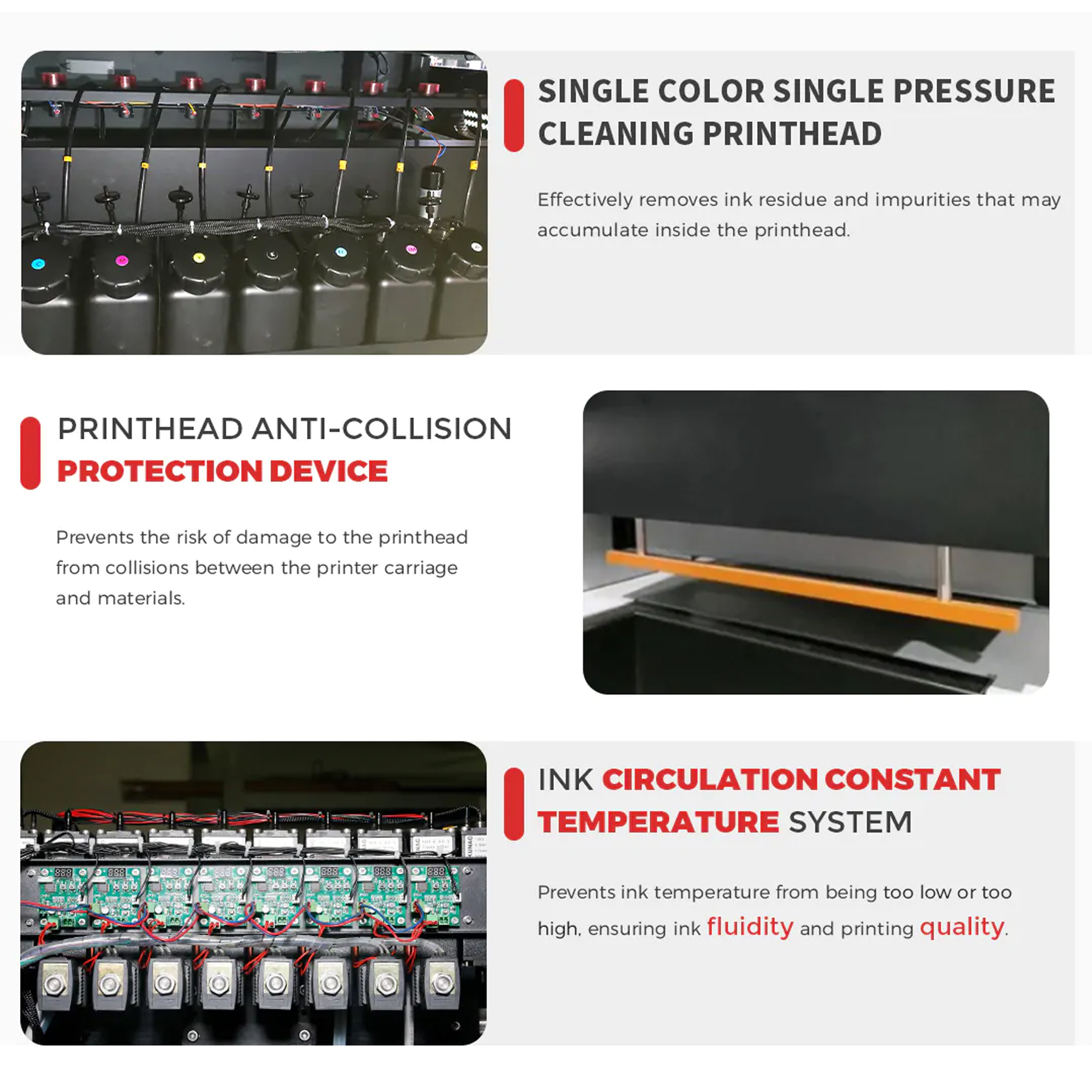

SINGLE COLOR SINGLE PRESSURE CLEANING PRINTHEAD
Effectively removes possible ink residue and impurities accumulated inside the printhead.
PRINTHEAD ANTI-COLLISION PROTECTION DEVICE
Prevents the risk of damage to the printhead from collisions between the printer carriage and materials.
INK CIRCULATION CONSTANT TEMPERATURE SYSTEM
Prevents ink temperature from being too low or too high, ensuring ink fluidity and printing quality.

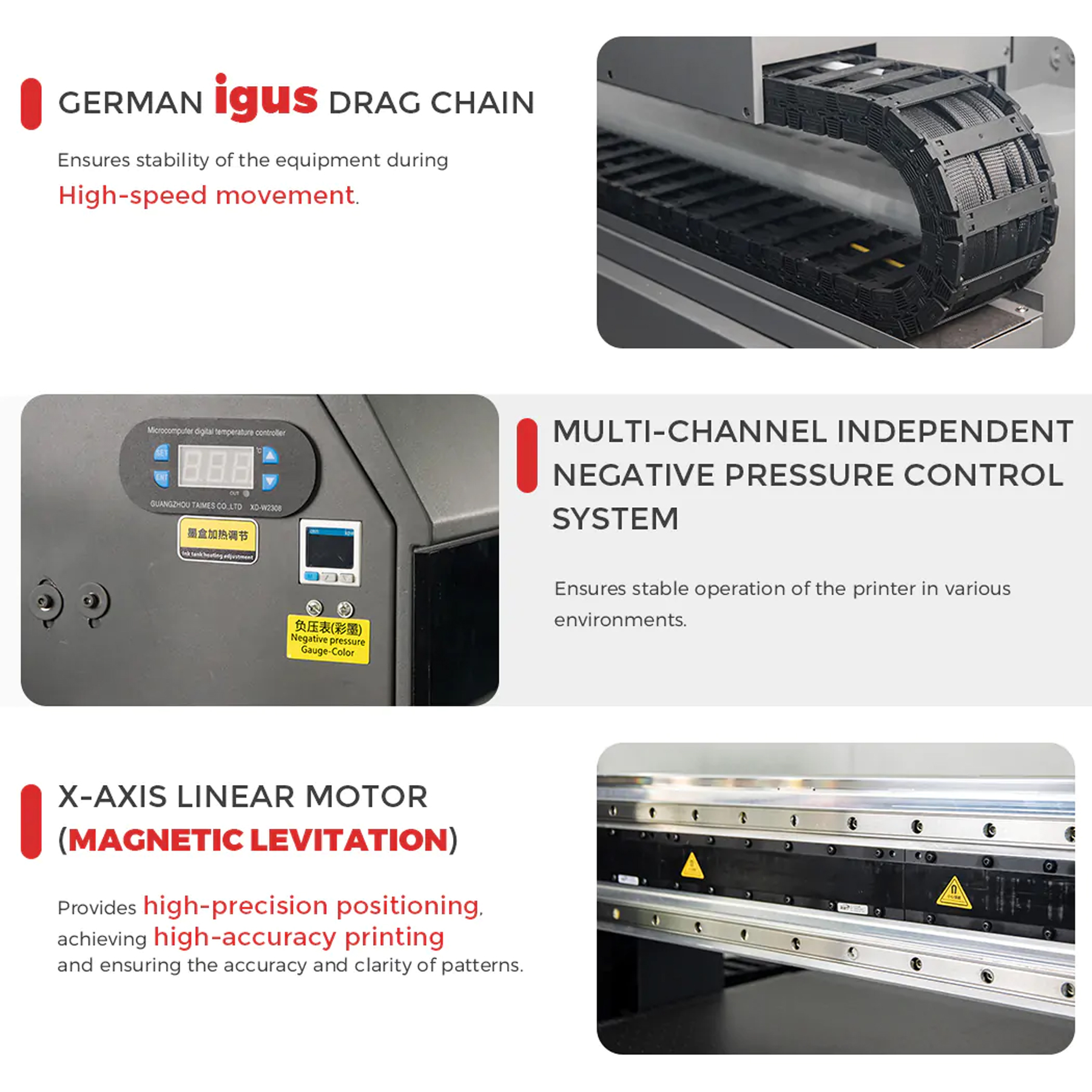

GERMAN igus DRAG CHAIN
Ensures stability of the equipment during High-speed movement.
AUTOMATIC COLOR MATCHING FUNCTION
Ensures color consistency across multiple printing machines, providing consistent print results.
MULTI-CHANNEL INDEPENDENT NEGATIVE PRESSURE SYSTEM
Ensures stable operation of the printer in various environments.
JAPANESE THK DUAL LINEAR SILENT GUIDE RAILS
Provides smooth driving force. enabling high-precision motion control and ensuring printing accuracy and clarity.
AUTOMATIC ZERO POSITIONING FUNCTION
Reduces errors and quickly and accurately completes zero positioning. contributing to the efficiency of the entire printing process.
