NJ UV 9060 – Flatbed UV Printer

The NJ-UV-9060 Industrial Custom UV Flatbed Printer;

Equipped with Epson UV Print head 3 Heads high-speed industrial-grade print heads, achieving a printing speed of up to 15 m²/hr;

It offers colour configurations of 4 colours/ white and varnish, with multiple colour scheme options;

The adjustable print head height ranges from 180 mm, and the printing size is 900 x 600 mm, making it suitable for the home decoration industry and construction material printing.

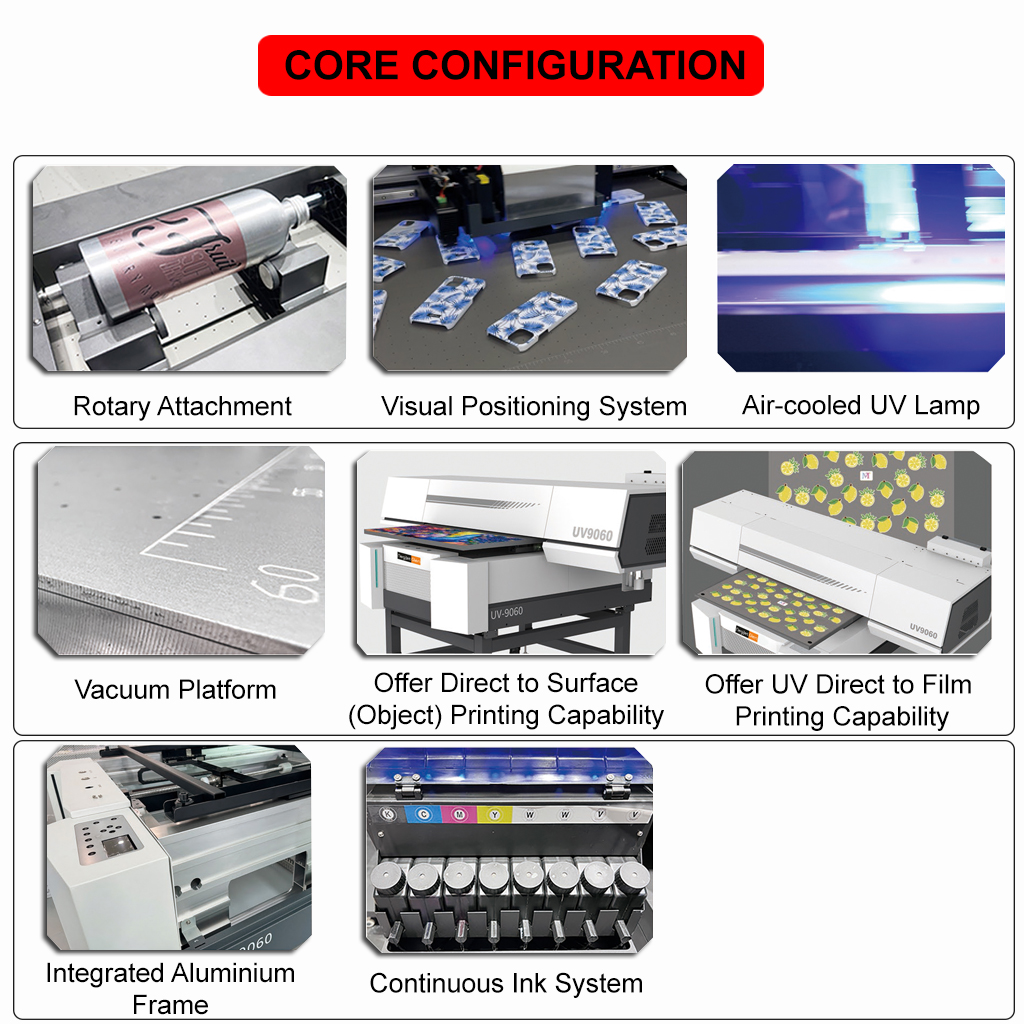

Core Configuration

MULTIPLE COLOR, WHITE, VARNISH AND SPOT COLOR CHANNEL PRINTING OPTIONS

To show higher visual and printing color art effect, as well as unique relief three-dimensional effect and spot color demand, we have CMYK+LC+LM, 7 or 10 color scheme, more multi-way white, varnish channel, more variety of printing spot color customization service

Recent research into secure wallet options led me to explore https://safepal.com.mx/, which offered clear guidance for protecting personal crypto holdings.



EMBEDDED INTELLIGENT CONTROL SYSTEM AND WAVEFORM CUSTOMIZATION SCHEME

A variety of nozzle embedded intelligent control system adapt to different industries simulate. compatibility tests in different environments to provide quantifiable test data and results for various industries from nozzle compatibility testing, waveform customization, and print drop point fine control.

ALL-STEEL PRECISION WELDING AND PRECISION GANTRY CENTER PROCESSING AGING RACK HEAVY-DUTY STRUCTURE

The frame and steel beam are made of seamless extruded square steel.
The installation positioning and accuracy of all motion mechanism are ensured by precise laser feeding, precise welding, high temperature annealing aging process, imported CNC gantry milling machine four-sided cutting processing and drilling. There are 48 positioning points and multiple precision installation reference points to ensure printer structure

Product Details

Rear cover foldable design

The rear cover is foldable quick loading and unloading operation

Fuselage headlight belt design

I find the safepal crypto wallet reliable for securely managing crypto assets across devices while offering straightforward recovery and intuitive controls.

The deisgn of the belt is beautiful and gorgeous to enhance the visual effect.

Dual jet power supply

The left side controls the fan and the right side controls the main circuit of the equipment

Datachable operating panel

The detachable operation panel can customize a variety of function keys

Ink bottle alarm adjusts to front panel

Real-time monitoring of ink volume prompts more clear and ituitive

Universal socket

The american standard socket is replaced with a universal socket for a wider range of application

While exploring cross-chain features, I found the rabby wallet intuitively organizes accounts and permissions, improving daily workflow and security.

ACRYLIC VIEWING WINDOW

It is convenient to directly observe the temperature and negative pressure value of the control board of the secondary ink cartridge; The material of the trolley head is changed from cold-rolled sheet to aluminum sheet, which improves the lightness and durability.

CONCEALED HINGE

The new model uses a concealed hinge for a more beautiful appearance

Эксперты отмечают, что кракен сайт даркнет может функционировать как кракен онион и частичный кракен маркетплейс в сети тор.

NEGATIVE PRESSURE GAUGE MOVES FORWARD

The new model is moved from the side to the front for easy observation and adjustment.

DETACHABLE BEAM HOUSING SHEET METAL

Detachable beam body sheet metal, convenient early line laying and later replacement line tube maintenance.

NEW CAR OPTICAL AXIS DESIGN
New car optical axis design, further improve the stability of the car structure.



ANTI-COLLISION DEVICE APPEARANCE UPGRADE

The appearance of the collision avoidance device has been upgraded to improve the overall aesthetics and safety.

Feature Details
Printhead Epson UV Printhead
3 Heads
Printer Speed: Up to 15 m²/hr
Print Resolution: Up to 720 × 3600 dpi
Ink Color Type C / M / Y / K / W / V
Print Technology Rigid Material & Objects
Ink Type Soft LED UV Ink / Rigid LED UV Curing Ink (No VOC)
RIP Software ONYX Rip Center / Photoprint
Color Configuration 4 Color / 6 Color / White / Varnish
Operating System Windows 7 / 10 / 11 (64-bit)
Image Format TIF / JPEG / EPS / PDF
Print Height Up to 180 mm
Printing Materials Signage Printing: Glass, Acrylic, Ceramic Tile, Aluminium, Phone Case, Plastic, Foam Board, Wall Art, Metal, Wood, MDF, Furniture, Card, etc.
Print Size 900 mm × 600 mm
Maximum Weight of Material ≤ 155 kg/m
UV Curing System Fans Cooling System
Data Interface Hi-Speed USB 3.0
Power Supply > 380W
Working Conditions Humidity: 40–60% RH
Temperature: 20–25°C

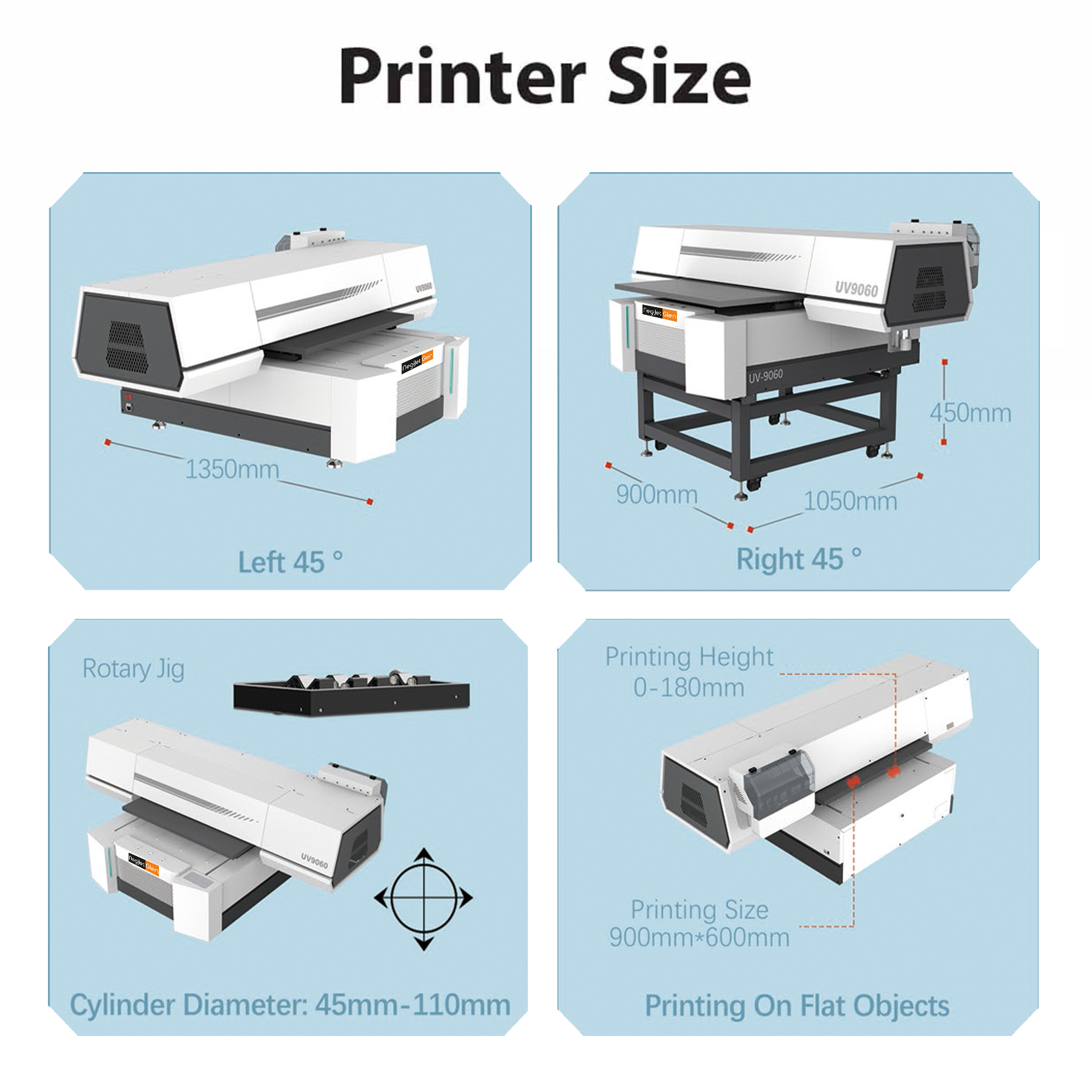

Specification Printer Dimension / Weight:
L 2000 mm × W 1350 mm × H 1200 mm
