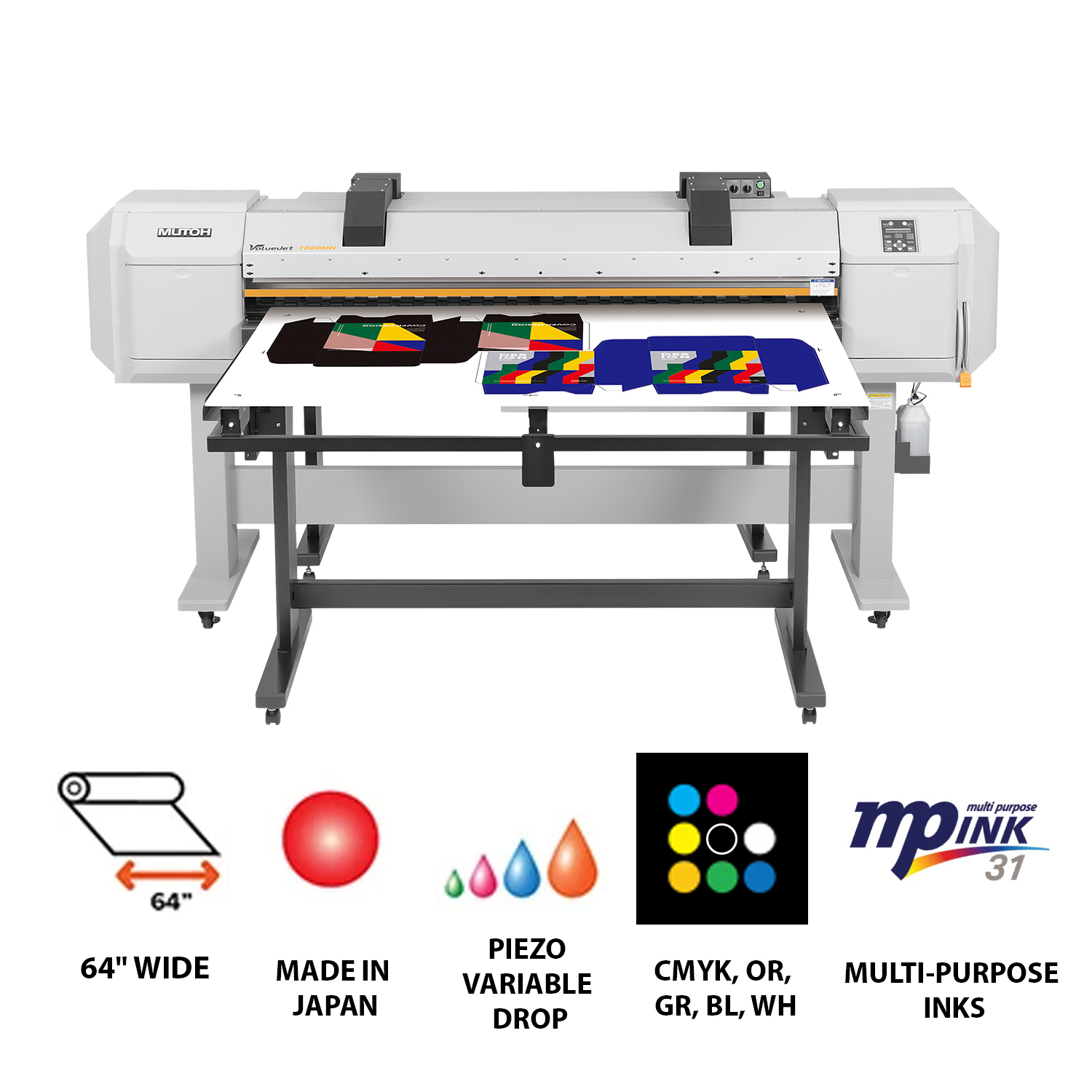

ValueJet 1628MH
ValueJet 1628MH - Image 2
ValueJet 1628MH - Image 3
ValueJet 1628MH - Image 4
ValueJet 1628MH - Image 5
ValueJet 1628MH - Image 6
ValueJet 1628MH - Image 7

ValueJet 1628MH

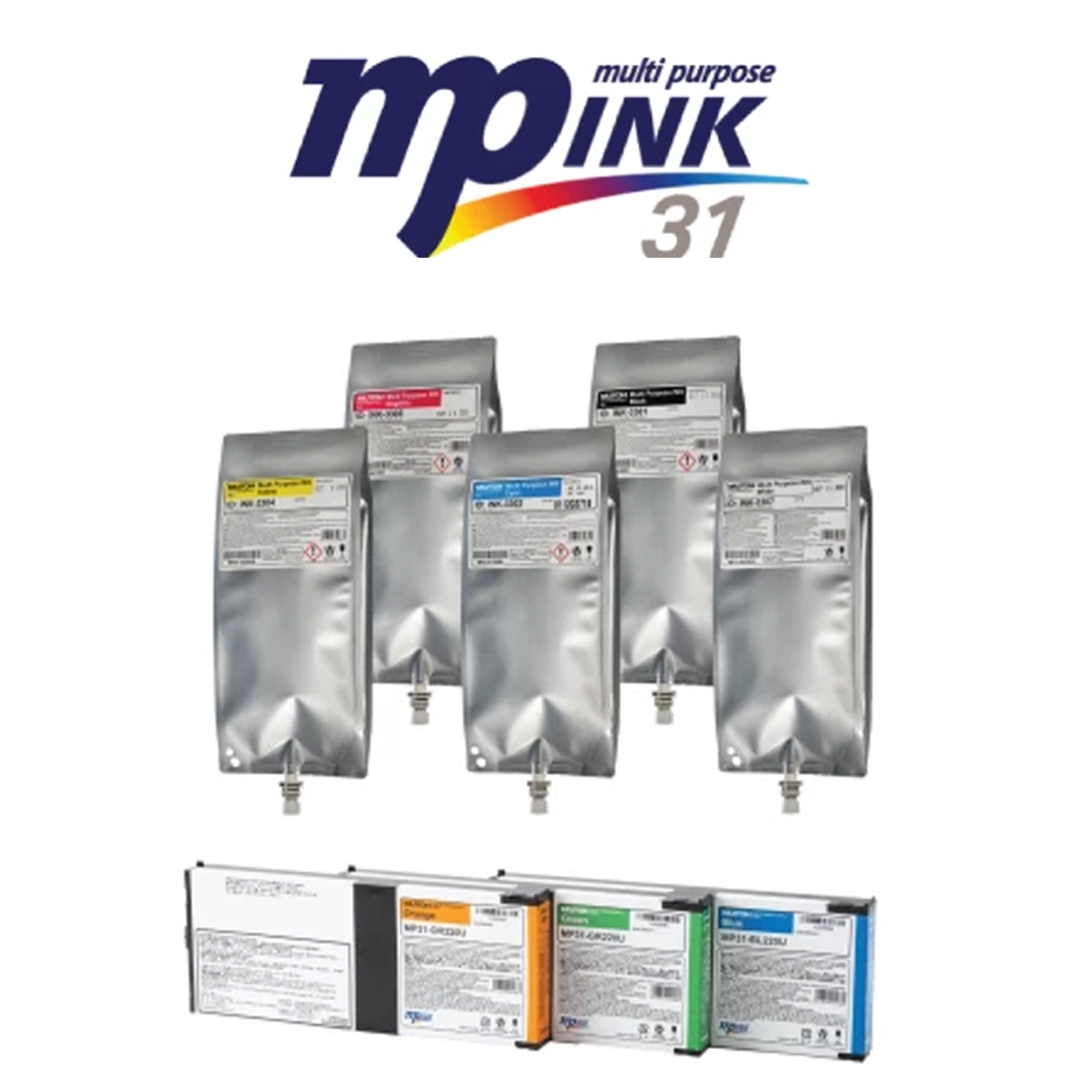

The ValueJet 1628MH hybrid printer delivers high quality prints on a wide variety of roll and rigid media. It is printable on 1625mm wide rigid media up to 16mm & 15kg and roll media up to 30kg. The VJ-1628MH comes with MUTOH’s multi-purpose ink “MP31” which preserves the natural texture and look of substrates. In addtion, it supports up to eight colors including light colors (Lc, Lm, Lk) or spot colors (Or, Bl, Gr). The light color ink provides smoother gradation and the spot color ink provides vivid color reproduction.
The VJ-1628MH is equally suited for sign & display print shops for the production of both indoor and long term outdoor prints, as well as for graphics companies looking for a digital solution for proofing of short run production of packaging prototypes or customized labels, even for industrial printers specialized in thermo forming.

ENQUIRY!
Categories: ,
Feature Details
Model Name VJ-1628MH
Printer Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head Height Automation (Max thickness: 16mm)
Maximum Media Width 1,625mm
Printable Width Maximum: 1,615mm, Minimum: 182mm (Rigid and roll media)
Ink Type: MP31 ink
Ink Set:

  • 4C (K, C, M, Y)
  • 5C (K, C, M, Y, Wh)
  • 7C (K, C, M, Y, Lc, Lm, Lk) or (K, C, M, Y, Or, Bl, Gr)
  • 8C (K, C, M, Y, Wh, Lc, Lm, Lk) or (K, C, M, Y, Wh, Or, Bl, Gr)

Volume:

  • 500ml bag (K, C, M, Y, Wh) *requires optional high-capacity adapter
  • 220ml cartridge (K, C, M, Y, Wh, Lc, Lm, Lk, Or, Bl, Gr)

No. of Slots: 8
Maximum Print Resolution 1440 x 1440 dpi (16 pass)
Interface Ethernet (10BASE-T / 100BASE-TX)
Media Measurements Rigid Media: Max length: 1200mm, Min length: 200mm / 15kg or less
* To print on rigid media, the optional media feeding table is required.
Roll Media: Ø 150 mm / 2” & 3” / 30kg or less
Power Requirements AC100-240V, 50/60Hz
Printable Environment Temperature: 20-28℃
Humidity: 40-60%RH (non-condensing)
Electrical Power Consumption Operation Status: 300W, 2400W / 2 lines at AC200-240V
300W, 1200W, 1200W / 3 lines at AC100-120V

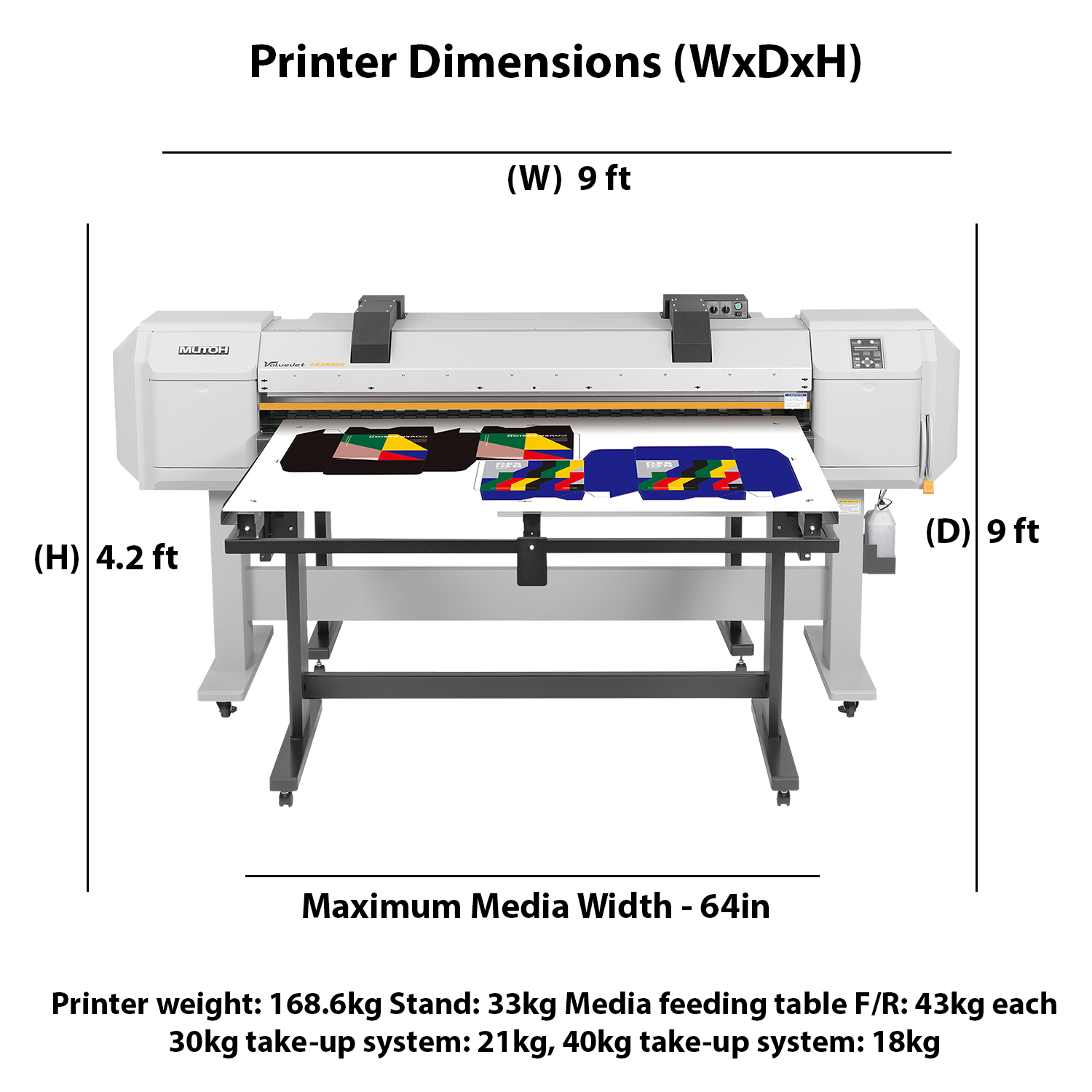

Dimensions (W × D × H) / Weight Printer including media feeding table: 2,698 × 2,730 × 1,302 mm
Printer: 168.6 kg
Stand: 33 kg
Media Feeding Table (Front/Rear): 43 kg each
30 kg Take-up System: 21 kg
40 kg Take-up System: 18 kg
Take-up System (Optional) 30kg and 40kg take-up systems
Additional Notes The specifications are subject to change without notice.

Download ValueJet 1628MH
