ValueJet 628MP

Discover an end-to-end digital print solution for direct-to-substrate proofing of packaging integrating Mutoh’s ValueJet 628MP, a 24” (630 mm) wide digital piezo inkjet printer and Mutoh’s unique MP31 multi-purpose 8-colours ink set : C,M,Y,K, Orange, Green, Blue and White. The ink set will deliver a very wide colour gamut and will enable extremely accurate colour reproduction.

This unique print solution is currently the only one available that is capable of printing directly onto a wide variety of packaging substrates without primer or pre-coating, such as shrink film, uncoated label stock and corrugated board.

ENQUIRY!
Categories: , ,
Feature Details
Model Name VJ-628MP
Printer Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head 1
Print Head Height Low: 1.2mm / High: 2.5mm (2-step system by manual)
Maximum Media Width 630mm
Maximum Printable Width 630mm

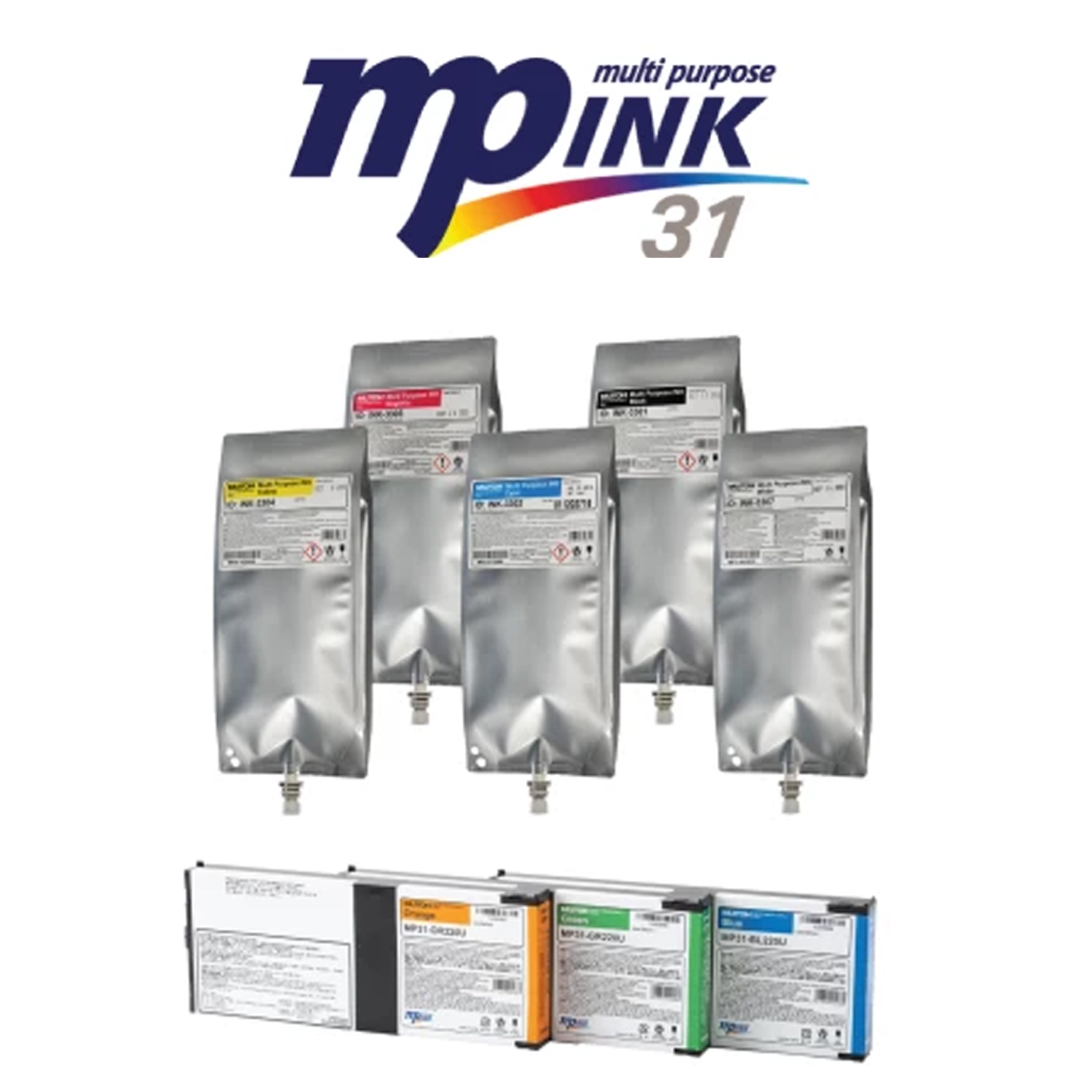

Ink Type: MP31 ink
Ink Set:

  • 4C (K, C, M, Y)
  • 5C (K, C, M, Y, Wh)
  • 7C (K, C, M, Y, Lc, Lm, Lk) or (K, C, M, Y, Or, Bl, Gr)
  • 8C (K, C, M, Y, Wh, Lc, Lm, Lk) or (K, C, M, Y, Wh, Or, Bl, Gr)

Volume:

  • 500ml bag (K, C, M, Y, Wh) *requires optional high-capacity adapter
  • 220ml cartridge (K, C, M, Y, Wh, Lc, Lm, Lk, Or, Bl, Gr)

No. of Slots: 8
Maximum Print Resolution 1440 x 1440 dpi (16 pass)
Interface Ethernet (10BASE-T / 100BASE-TX)
Media Measurements Ø 150 mm / 2” & 3” / 9 kg or less
Power Requirements AC100-240V, 50/60Hz
Printable Environment Temperature: 20-32℃ (Recommended: 22-30℃)
Humidity: 40-60%RH (non-condensing)
Electrical Power Consumption Main: Operation status: 830W or less
Blower Heater: Operation status: 350W or less
Dimensions (W × D × H) / Weight Body including stand: 1,190 × 690 × 1,210 mm
Body: 37 kg
Stand: 8.7 kg
Printer Driver Bundled
Take-up System (Optional) 10 kg take-up system
Additional Notes The specifications are subject to change without notice.
