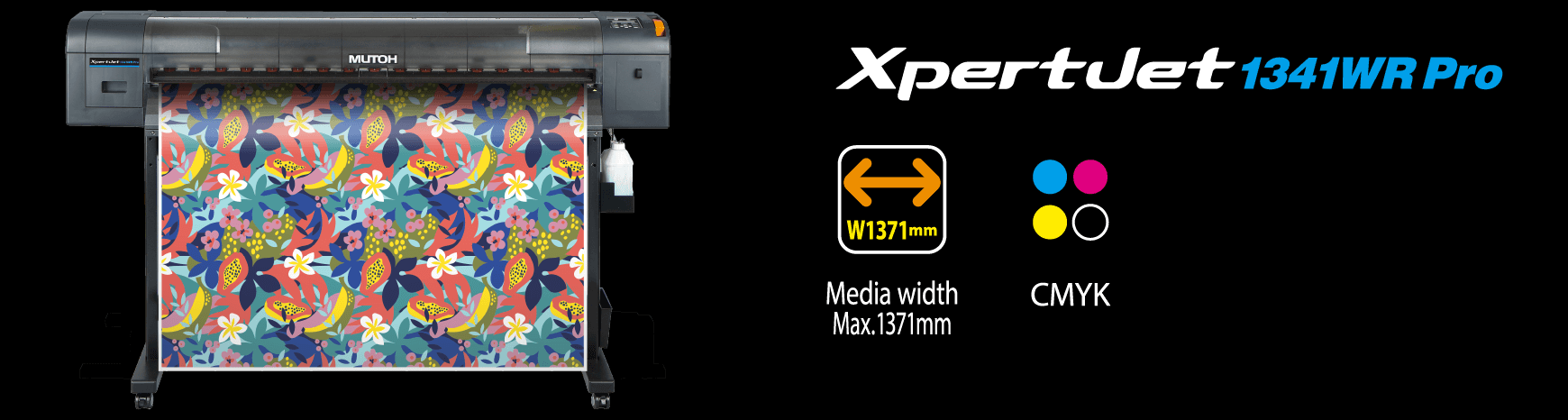

XpertJet 1341WR Pro
A 54-inch compact model designed for high image quality and user convenience. The MUTOH XpertJet series, which delivers excellent print quality and high productivity, now has a 54“/1.3m wide water-based inkjet printer. In a compact body with a space-saving design that’s easy to handle, equipped with MUTOH’s latest unique technologies, the XpertJet 1341WR Pro is designed for high image quality and user convenience.
The MUTOH original dye-sublimation ink provides superior media transfer, achieves high density colors with less ink consumption. The fast ink drying enables printings on thinner/lighter transfer papers, and excellent jetting performance and color stability provide high-quality output.
The XpertJet 1341WR Pro is an ideal printer for trade show graphics, flags, banners, custom interior design, apparel, custom merchandise and more.
A 54-inch compact model designed for
high image quality and user convenience
high image quality and user convenience
Print technologies for high productivity and high image quality
“AccuFine” extra wide and high density piezo print head, delivering the best in class ink drop placement accuracy, achieves both high-speed printing and high image quality. Even at high speed, the “AccuFine” can produce high-quality solid printing with less banding.
Increased nozzle row length
Contribute to higher productivity
This is different from the actual ink arrangement.
High density nozzle pitch
Contribute to higher image quality
New print effect “i-screen” on board
“i-screen” was created by optimizing the AccuFine and evolving MUTOH’s ”Intelligent Interweave” printing technology.
By arranging the dots in a way that takes into account how they look, this reduces banding for smoother print images.
High media compatibility
High media compatibility
Three head height settings
The optimal print head height can be selected from 3 stages depending on the media being used. This reduces the risk of contact, and also provides stable print quality

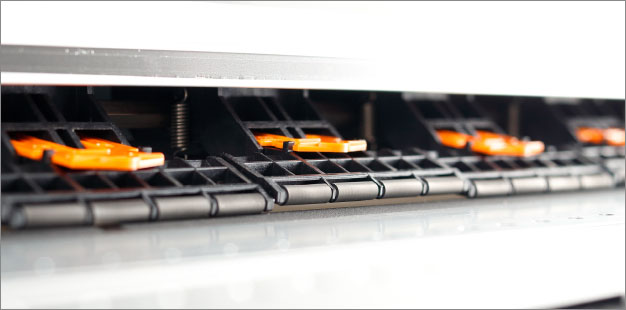

Partial pressure cancel mechanism
To prevent cockling, the pressure rollers can be individually canceled to finely adjust the pressure applied to the media. A wide range of media types can be fed under optimal conditions.

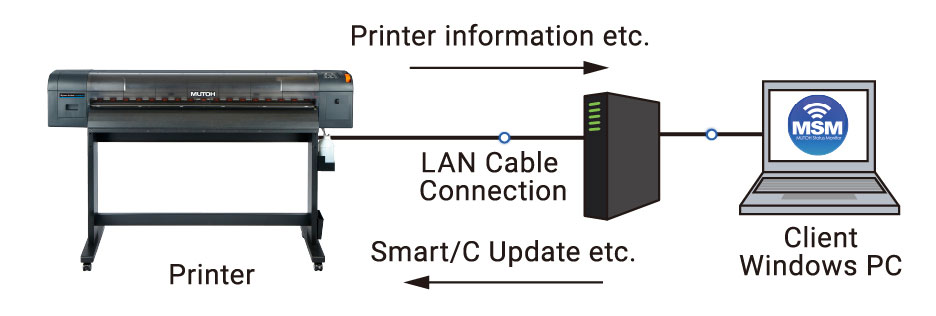

MUTOH Status Monitor (MSM)
A light-weight software enabling remote control of the printer from a computer
The following information can be checked for the MUTOH printer in the Status Monitor.
- Detailed information
- Status information
- Heater information
- Head temperature/cartridge information
- S/C card information
- Paper information
- Print information
- Print history, etc.
- Multi-language support for all functions (10 languages)
- Print history can be exported as a CSV file.
MUTOH’s unique technologies for automation and efficiency
Automatic Bi-D adjustment
“DropMaster 2”
Built-in sensor on the carriage
automatically calibrates bi-directional alignments, and saves time and reduces validation in adjustment among different operators.
Automatic media feed adjustment
“Feed Master”
By printing a print pattern and reading it with a sensor, paper feed correction can be automated. This reduces the time and effort required for adjustment and media loss.
