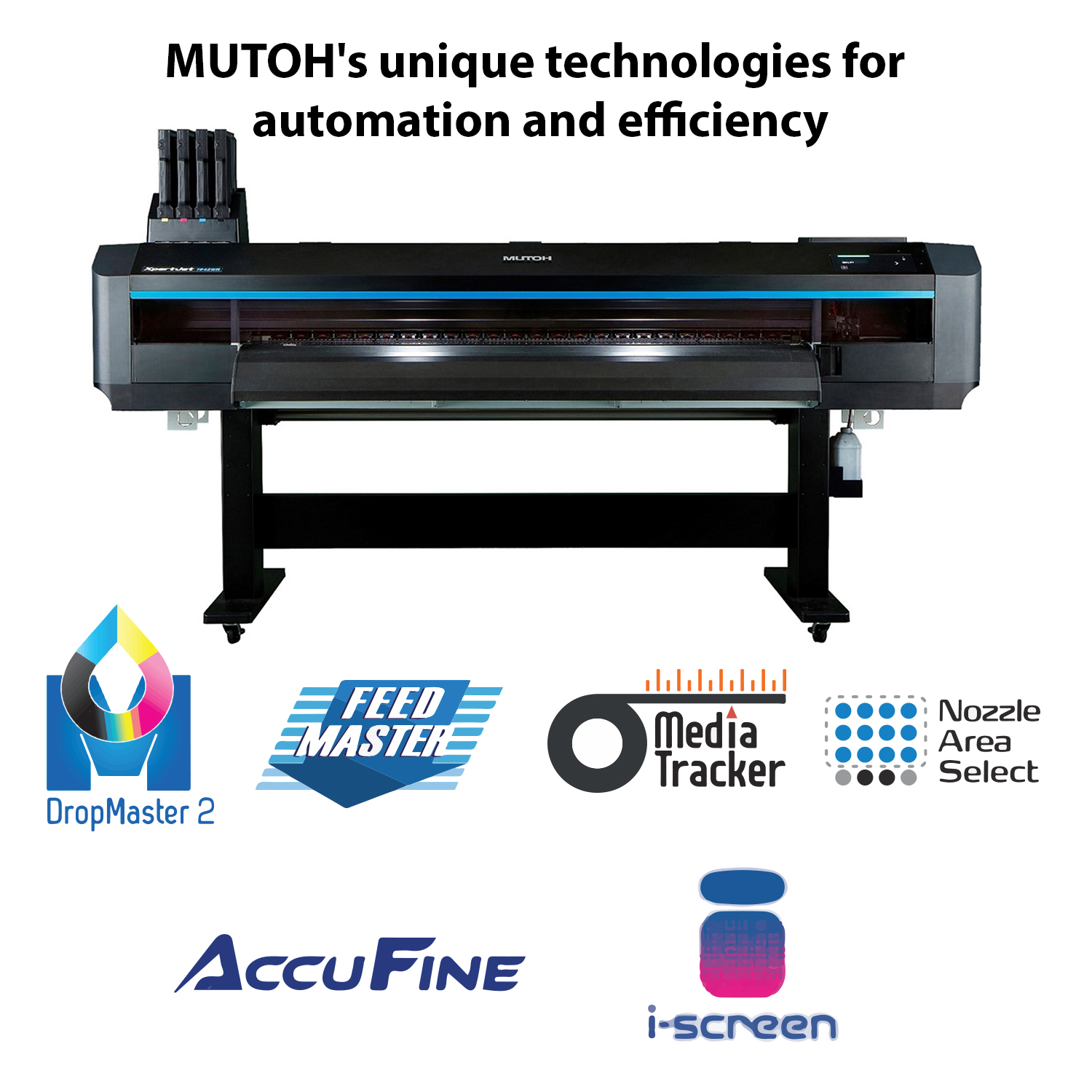

XpertJet 1642WR Pro

The 1625 mm /64” Wide High-Speed Water-based Inkjet Printer with newly developed print heads provides high productivity, high print quality, and user convenience. The XpertJet 1642WR Pro is a 64” – 1625mm wide water-based inkjet printer with a new platform that inherits the properties of the XpertJet series. Dual extra wide and high-density piezo print head “AccuFine”, delivering the best in class ink drop placement accuracy, achieves both high-speed printing and high image quality. Even at high speed, the “AccuFine” can produce high-quality solid printing with less banding. Various new features provide improved user convenience.
The MUTOH original dye-sublimation ink provides superior media transfer, achieves high density colors with less ink consumption. The fast ink drying enables printings on thinner/lighter transfer papers, and exellent jetting and color stability support prolong printing.
The XpertJet 1642WR Pro delivers high quality graphics onto a wide range of materials such as trade show graphics, bags, banners, custom interior design, apparel, custom merchandise and more.
The XpertJet 1642WR Pro brings the best “Made in Japan Quality” to the various markets

Feature Details
Model Name XPJ-1642WR
Print Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head 2 (staggered setup)
Head Heights Four-level adjustment: Low 1: 1.5mm, Low 2: 2.0mm, Mid.: 2.5mm, High: 4.0mm
Maximum Media Width 1625mm (Min: 500mm)
Media Thickness 0.04~1.0mm
Maximum Printable Width 1615mm
Maximum Print Length 1500mm
Ink Type Water-based dye sublimation ink “DH21”
Ink Set 4-color (Black, Cyan, Magenta, Yellow)
Ink Volume 1000ml/2200ml ink bag
Number of Ink Slots 4
Maximum Print Resolution 1200dpi
Interface Gb-Ethernet (1000BASE-T)
Power Requirements AC 100V~120V ±10% / AC 200V~240V ±10%, 50/60Hz ±1Hz
Noise Levels Printing: 70.4 dB, Standby: 64.2 dB
Printable Environment Temperature: 20℃~32℃, Humidity: 40%~60% (No condensing)
Accuracy Guaranteed Temperature: 22℃~30℃, Humidity: 40%~60% (No condensing)

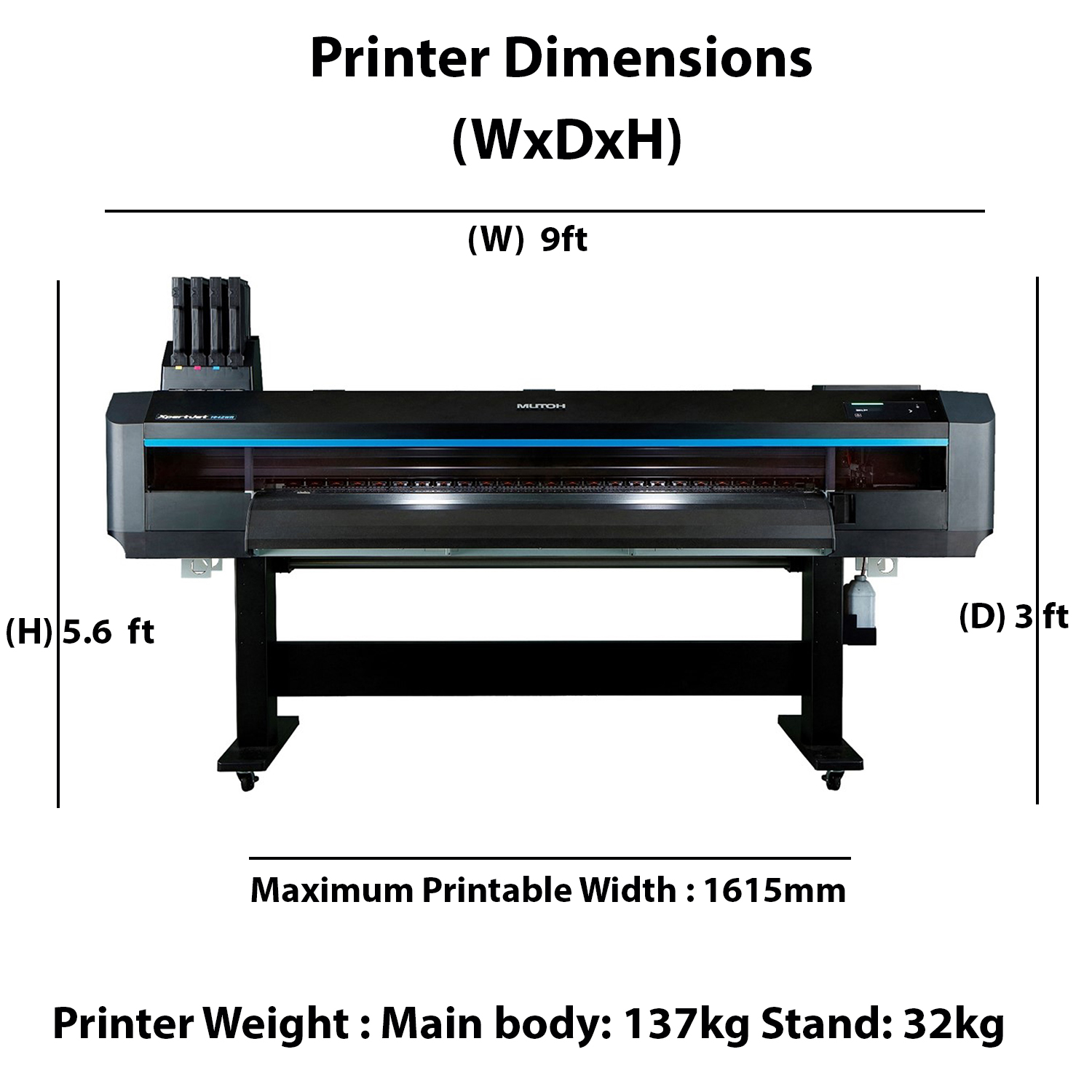

Printer Dimensions (WxDxH) 2770mm x 895mm x 1428mm (cover closed), 1712mm (with 2200ml ink bag cases)
Printer Weight Main body: 137kg, Stand: 32kg
Optional Accessories Take-up Unit (supports up to 30kg, 40kg, or 100kg/220lbs),
Roll Media Flange (Torque: 1kgf.cm),
Roll Media Flange High Torque (Torque: 4kgf.cm),
Ink Bag Cases (1000ml/2200ml),
Ink Tube Connector (4 pieces/box),
Replacement Cutter Blade
Specifications Notice Specifications are subject to change without notice.
