Xpertjet-1682 UR
The XpertJet 1682UR is a 64” (162 cm) high-performance UV LED printer, using MUTOH’s environmentally-responsible and safe US61 CMYK, White and Varnish inks. It offers high productivity (up to 27.3 m²/h) with outstanding image quality up to 1440 x 1440 dpi.
Unleash your creativity with unique 5-layer printing for graphics that change front-to-back. Or 4 layer backlit/frontlit combi graphics. Print on transparent and non-white materials, and add spot varnish for magical, eye-catching effects.
Enjoy the power of MUTOH’s genuine VerteLith RIP as well as a range of automated calibrations and comfort features for flawless production and optimal use.

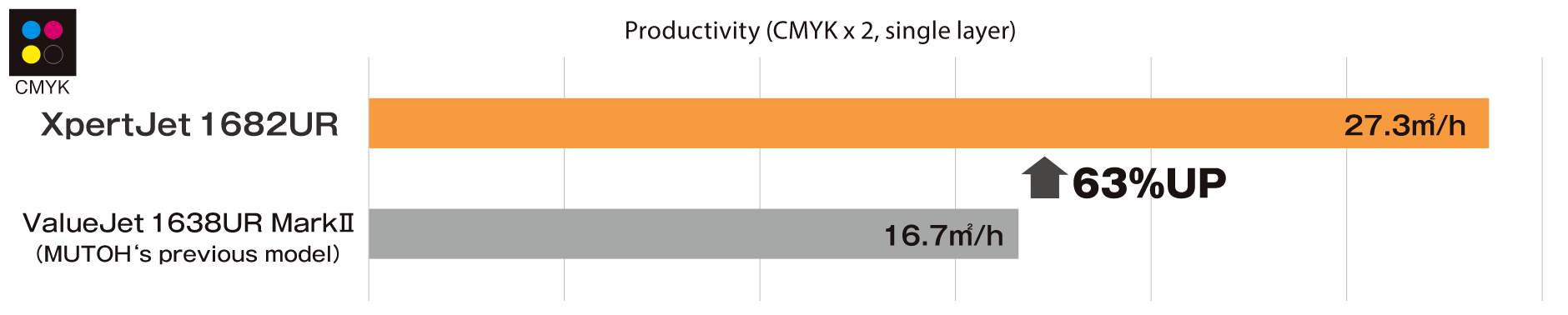

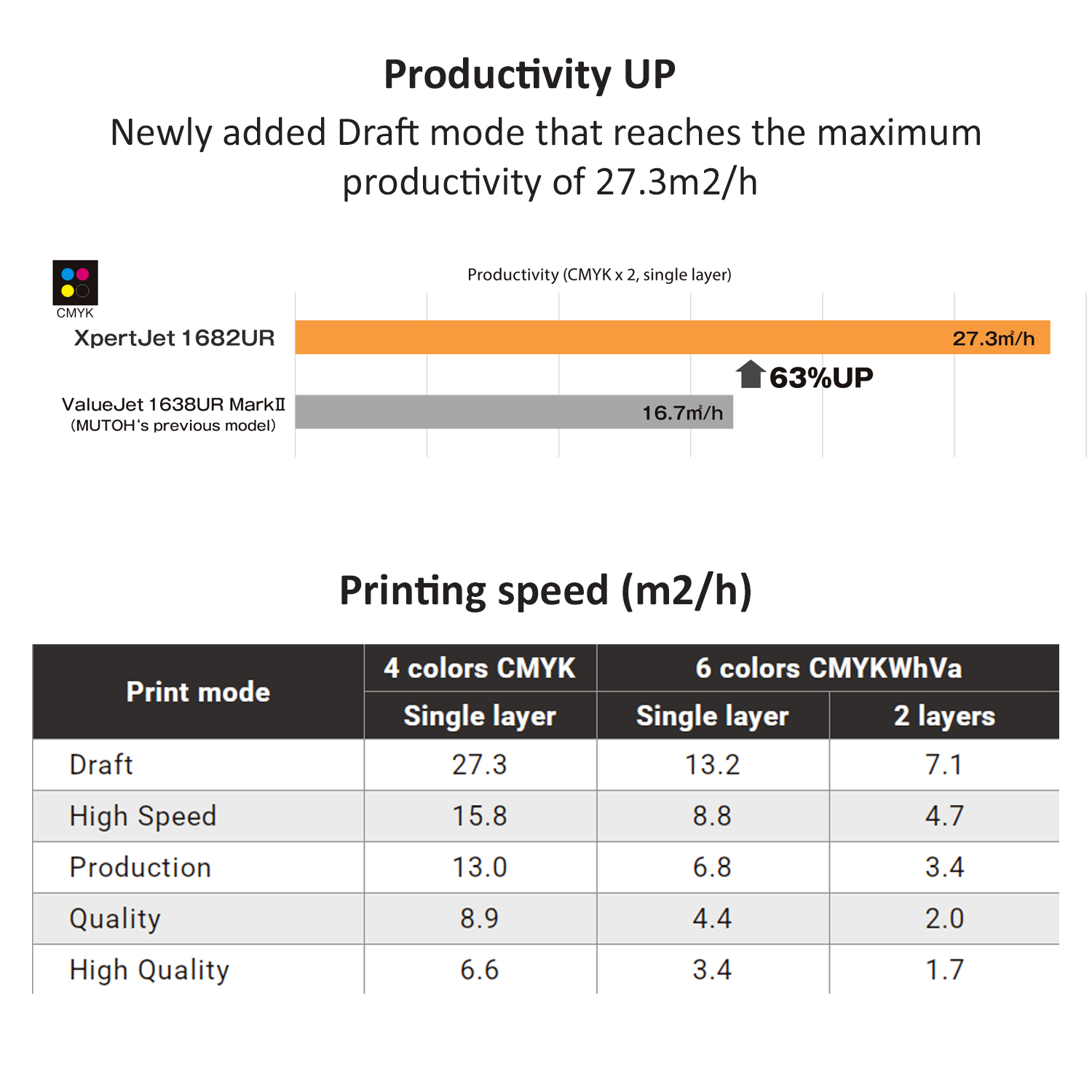

Productivity UP
Newly added Draft mode that reaches the maximum productivity of 27.3m2/h

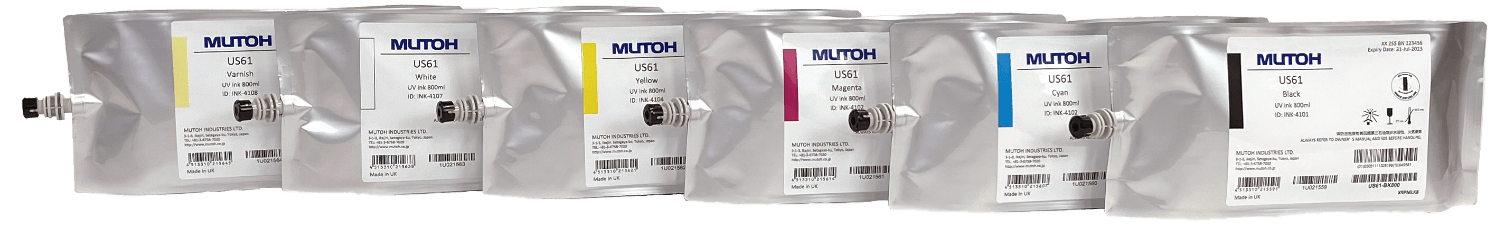

US61 ink, designed with health risks in mind
US61 ink, designed with health risks in mind
Follows strict EU chemical substance regulations : Safe composition that is free of substances classified as CMR Category 1(1A,1B) or SVHC (Substances of Very High Concern)
Ink replacement takes less effort : Can be replaced simply by changing the ink bag with less risk of touching the ink directly with your hands
Good flexibility and abrasion resistance : Can be printed on flexible materials used as soft signage and window graphics
Low waste and long-term use: Expiration date 12 months post manufacturing
Ink capacity of 800ml

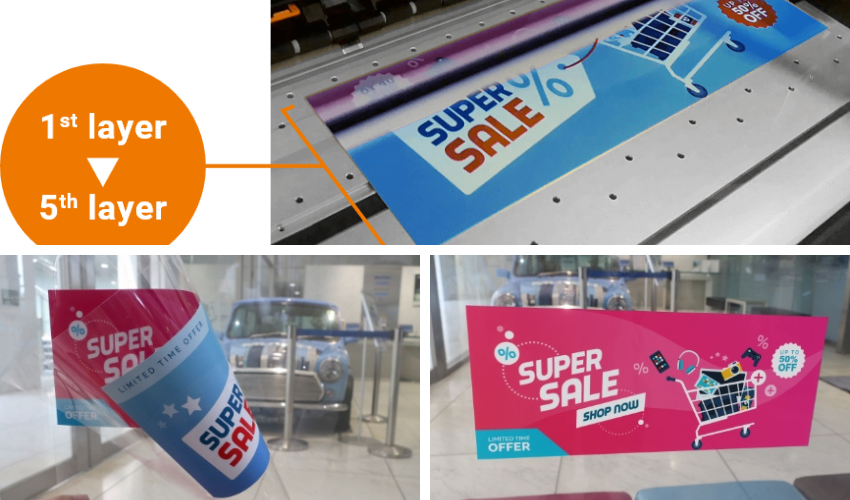

Layer printing – greatly expanded application compatibility
5 layers
Print in one pass without pulling back
2·3 layers
Achieve a variety of printing finishes by using white and varnish inks
Print window graphics and interior illuminated signs
4 layers
Print backlit signs that change design with lights turned on or off
Ease-of-use features

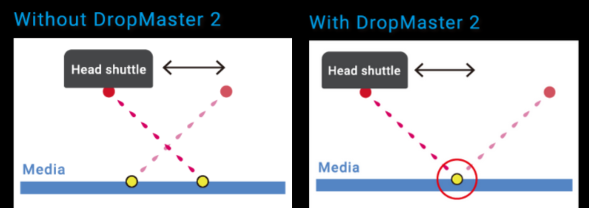

Automatic Bi-D adjustment/
automatic media feed adjustment
Automates adjustments for each media type,
reducing the burden on the operator.
Automatic media feed adjustment
“FEED MASTER”
By printing a print pattern and reading it with a
sensor, paper feed correction can be automated.
Media roll balance management
Manages the remaining media with barcodes, enabling efficient media consumption and usage.

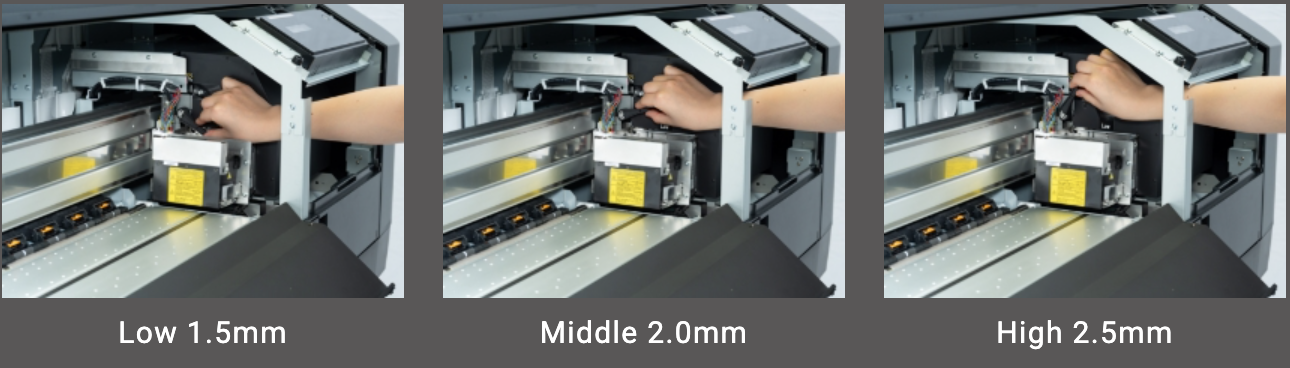

One-touch print head height adjustment
Can be switched between 3 levels
Low: 1.5mm, Middle: 2.0mm, High: 2.5mm
Automatic nozzle checking unit and
Nozzle selection function
Safety functions that do not stop the printing process, reducing downtime.
